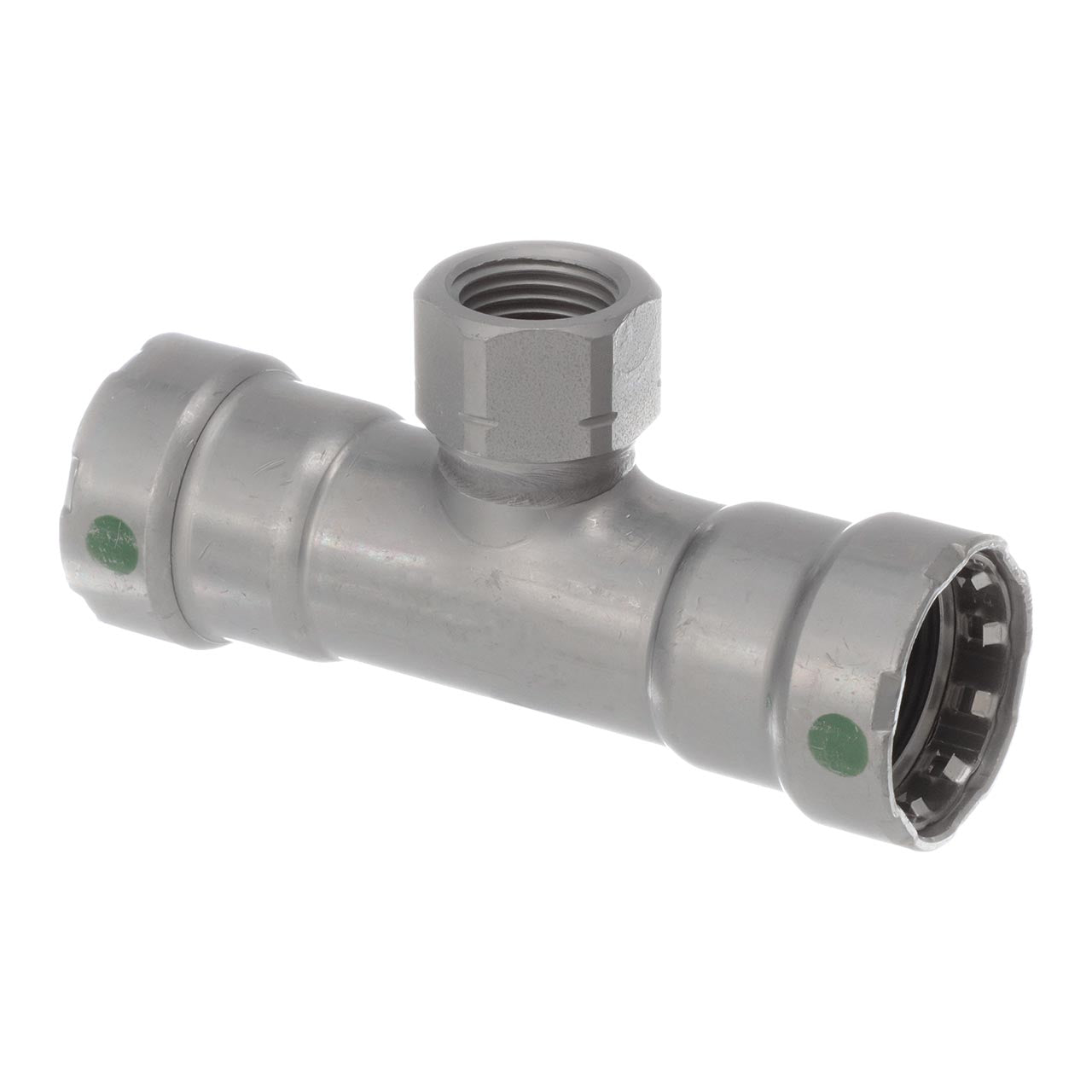

Megapress 25405 Carbon Steel Pipe Tee 3/4x3/4x1/2 Press Fnpt

Product Description

The MEGAPRESS 25405 is a carbon steel pipe tee designed for use in press-fit piping systems. It features a 3/4 x 3/4 x 1/2 inch nominal size with an end configuration of Press x Press x FNPT, allowing two press connections on the run and a female NPT branch outlet. This fitting is part of the Viega MegaPress system, which is compatible with Schedule 5 through Schedule 40 black iron pipe. Licensed plumbers and pipefitters install this tee in mechanical, HVAC hydronic, and commercial piping systems where fast, reliable connections are needed without cutting oils or open flame.

The MEGAPRESS 25405 is suited for residential and commercial mechanical systems using black iron pipe. The Press x Press x FNPT end style makes it practical in retrofit and new construction applications where a threaded branch takeoff is needed while maintaining press connections on the main run. It is commonly found in hydronic heating, compressed air, and gas distribution systems where Schedule 40 or lighter wall black iron pipe is used. No soldering, brazing, or threading is required on the press ends, reducing labor time significantly on the job site.

Key Features

• 3/4 x 3/4 x 1/2 inch nominal size fits standard black iron pipe runs with a reduced branch outlet
• Press x Press x FNPT end style combines tool-press speed with threaded branch flexibility
• Compatible with Schedule 5 through Schedule 40 black iron pipe
• Carbon steel construction suited for mechanical and hydronic piping applications
• Eliminates cutting oils and open-flame joining methods on press ends
• Rated for service up to 250 degrees F

Compatibility

Designed for use within the Viega MegaPress carbon steel press system, compatible with Schedule 5 through Schedule 40 black iron pipe in nominal sizes 3/4 x 3/4 x 1/2 inch.

Installation Notes

Installation of press fittings requires a compatible press tool and jaw set rated for the MegaPress system — consult the tool manufacturer for the correct jaw profile before pressing. Power down or isolate the system and relieve pressure before making any connections or modifications to an existing piping system. The FNPT branch outlet must be assembled with appropriate thread sealant per local plumbing or mechanical code requirements. Work should be performed by a licensed plumber or pipefitter in accordance with applicable local codes.

Technical Specifications

• Fitting Type: Tee
• Nominal Size: 3/4 x 3/4 x 1/2 inches
• End Style: Press x Press x FNPT
• Material: Carbon Steel
• Temperature Range: 0 to 250 degrees F
• Origin: Import

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25405
