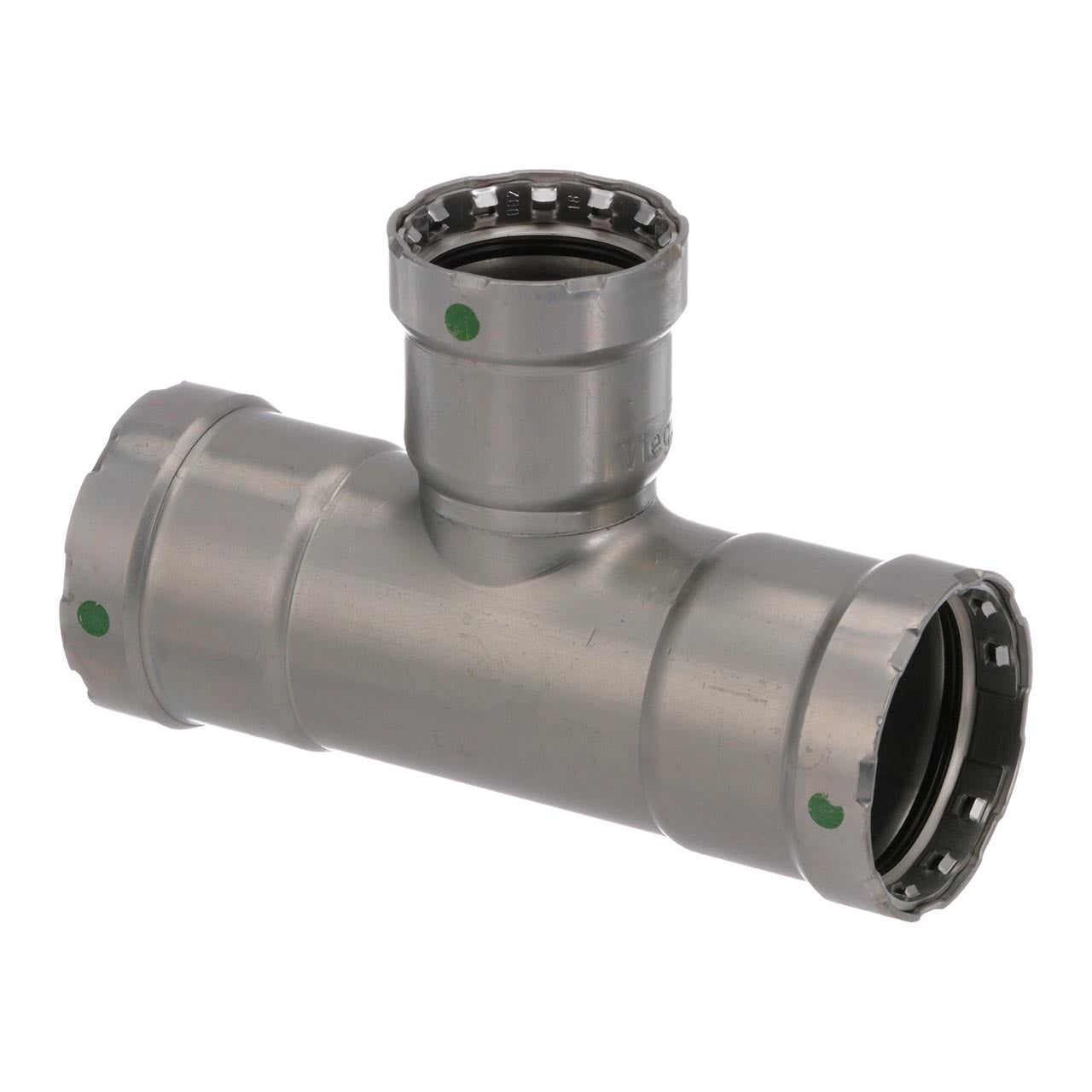

Megapress 25400 Carbon Steel Press Tee 2x2x1-1/2 in

Product Description

The MEGAPRESS 25400 is a carbon steel press tee designed for use in black iron pipe systems. This fitting connects three pipe runs at a tee junction using a press-style end connection, eliminating the need for threading, welding, or cutting oils. Compatible with Schedule 5 through Schedule 40 black iron pipe, it is well suited for mechanical, HVAC hydronic, and industrial piping systems where speed and cleanliness of installation are priorities. Licensed plumbers and pipefitters are the typical installing trades. The 2 x 2 x 1-1/2 inch nominal size makes it a common choice for branch reductions in medium-diameter pipe runs.

This tee is used in commercial and industrial piping applications, including HVAC hydronic systems, compressed air, and mechanical service lines. The press connection method is particularly valued in retrofit and occupied-building scenarios where open flame or threading equipment is impractical. The branch outlet steps down to a 1-1/2 inch nominal size, allowing for a direct reduction at the tee without an additional reducer fitting. No specific compatible model numbers or system families are listed in the available product data.

Key Features

• Press-style end connections on all three outlets for tool-pressed, no-flame installation
• Carbon steel construction compatible with Schedule 5 through Schedule 40 black iron pipe
• Reducing branch outlet eliminates need for a separate reducer fitting at the branch
• No cutting oils, threading, or welding required, keeping work areas clean
• Nominal size 2 x 2 x 1-1/2 inches suits medium-diameter branch reduction runs

Compatibility

Designed for use with Schedule 5 through Schedule 40 black iron pipe in press-fit piping systems. Suitable for HVAC hydronic, mechanical, and industrial service piping where carbon steel press fittings are specified.

Installation Notes

Installation must be performed by a licensed plumber or pipefitter using a compatible press tool and jaw set rated for the pipe diameter and fitting series. Verify the system is depressurized and drained before cutting into an existing line. Follow all applicable local plumbing codes and manufacturer press-tool specifications. Inspect the pipe end for squareness and remove burrs before insertion to ensure a proper seal.

Technical Specifications

• Fitting Type: Tee
• Nominal Size: 2 x 2 x 1-1/2 inches
• End Style: Press
• Material: Carbon Steel
• Domestic/Import: Import

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25400
