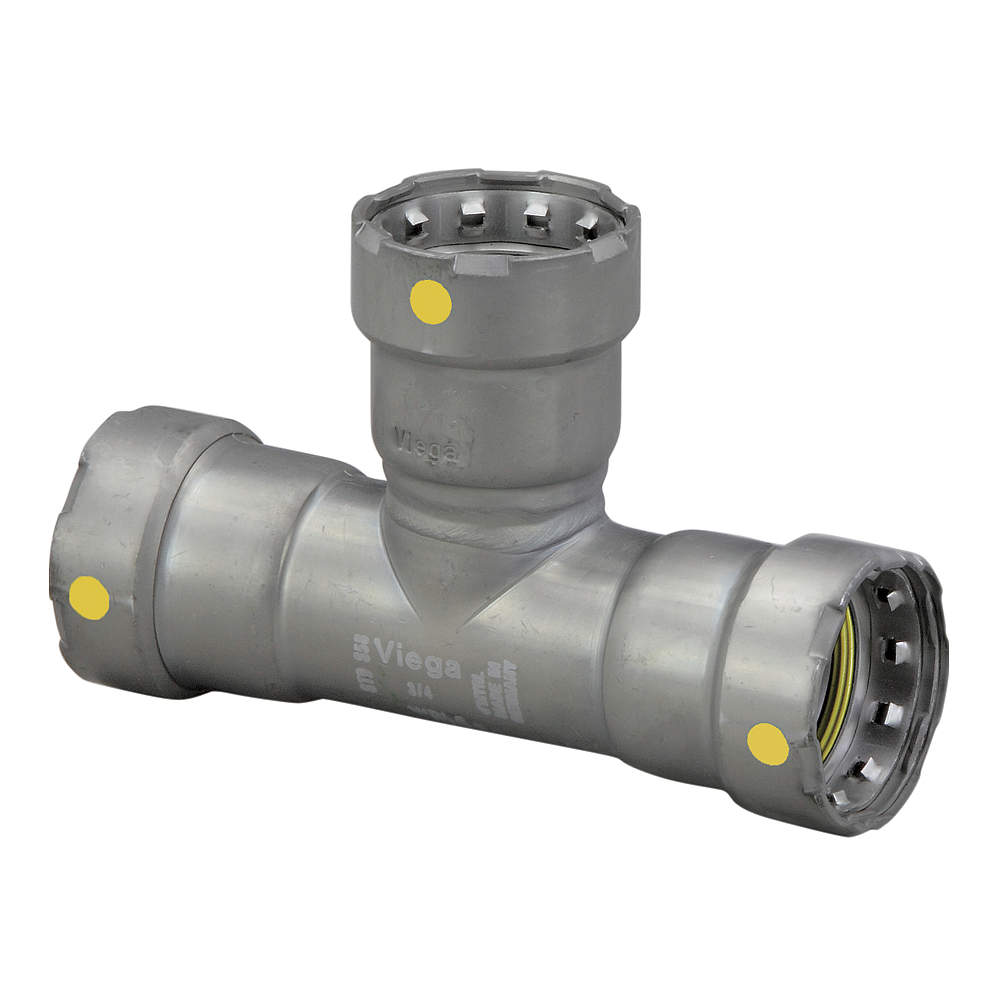

Megapress 25386 tee pipe 2 x 2 x 3/4in

Product Description

The MEGAPRESS 25386 Tee Pipe is a carbon steel press fitting designed for gas applications. This MegaPressG system is compatible with Schedule 5 to Schedule 40 black iron pipe, offering a press connection for efficient installation. It operates within a temperature range of -40 to 180 degrees F, reducing the need for cutting oils and speeding up the connection process.

• Makes secure press connections in less than seven seconds.
• Eliminates the need for oil or heavy threading equipment.
• Features the patented Viega Smart Connect system.

Product Highlights

Carbon steel press system for gas, featuring quick connections and Smart Connect technology.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25386
• Country of Origin: Germany

Technical Specifications

• Manufacturer: Viega
• Category: Steel Press Fittings
• MPN: 25386
• Nominal Size: 2 x 2 x 3/4 in
• Temperature Rating: -40 to 180 deg F
• Brand: MEGAPRESS
• Fitting/Connector Type: Tee
• End Style: Press
• Material: Carbon Steel
• Seal Material: HNBR
• Includes: HNBR Sealing Element (Yellow Dot)
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Standards and Approvals: ABS Listed, ANSI LC4/CSA 6.32, ASME B31, CRN OA14541.6, CSA B149.1, FM 1920, GL Listed, LR Certified, NFPA 13/13D/13R/31/54/58, CRN 0A14541.5 A/B, IAPMO UNIFORM PLUMBING CODE (UPC), ICC INTERNATIONAL MECHANICAL CODE (IMC), ICC-ES PMG-1036, IFGC
• Finish, Coating: Zinc Nickel Plated
• Max. Operating Pressure: 125 psi
• Overall Length: 7 9/16"
• Resistance Properties: Corrosion Resistant
• Specific Fitting Shape: Reducing Tee
• Sub-Brand: VIEGA MEGAPRESSG
