Product Description

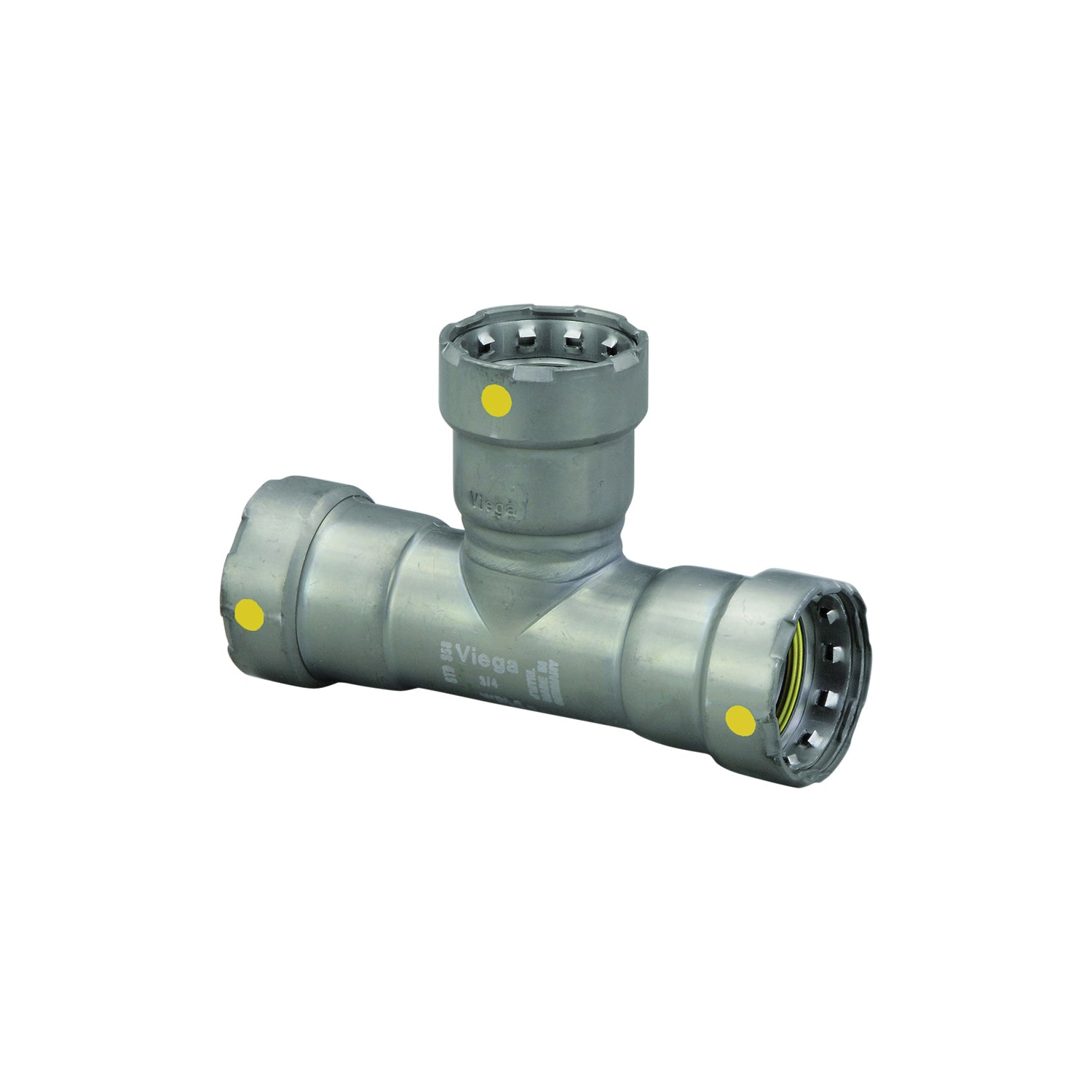

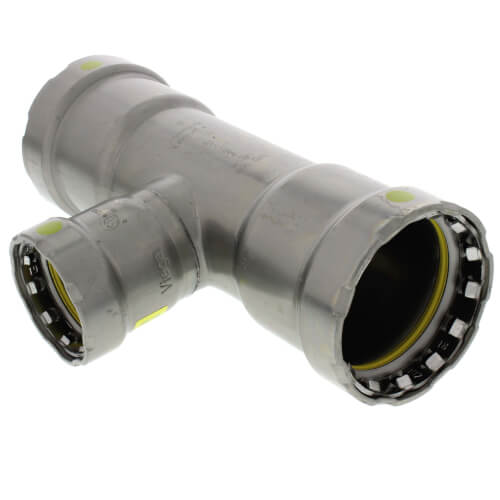

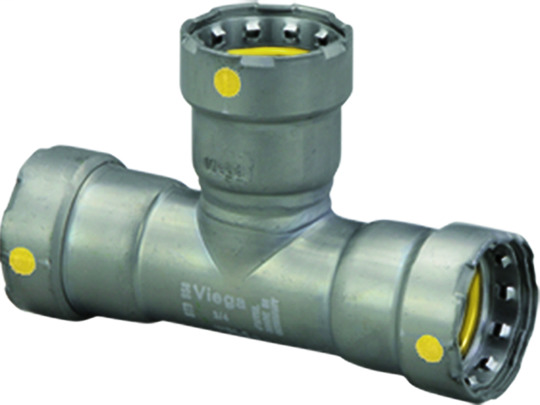

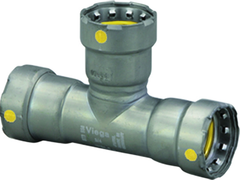

The MEGAPRESS 25371 Pipe Tee is a carbon steel fitting designed for gas applications. It features a press connection type and is compatible with Schedule 5 to Schedule 40 black iron pipe. This tee is rated for temperatures ranging from -40 to 180 degrees F, facilitating efficient and clean installations by reducing the need for cutting oils.
- Makes secure press connections in less than seven seconds.
- No oil or heavy threading equipment needed.
- Patented Viega Smart Connect feature.
Product Highlights
Facilitates quick and clean installations with secure press connections and Smart Connect technology.
Product Information
Standard Information
-
Brand: MEGAPRESS
-
Manufacturer Part Number: 25371
-
Country of Origin: Germany
Technical Specifications
-
MPN: 25371
-
Manufacturer: Viega
-
Size: 1-1/2 x 1-1/2 x 1 in
-
Operating Temperature Range: -40 to 180 deg F
-
Fitting Type: Tee
-
Material: Carbon Steel
-
Pipe Compatibility: Schedule 5 to Schedule 40 black iron pipe
-
Application: Gas
-
Connection Type: Press
-
Max Pressure: 125 PSI
-
Dimension L: 3.44 in
-
Dimension L1: 2.83 in
-
Dimension A: 1.57 in
-
Dimension A1: 1.48 in
-
Model Number: 6618
-
Seal Material: HNBR
-
Includes: HNBR Sealing Element (Yellow Dot)
-
Standards and Approvals: ABS Listed, ANSI LC4/CSA 6.32, ASME B31, CRN OA14541.6, CSA B149.1, FM 1920, GL Listed, LR Certified, NFPA 13/13D/13R/31/54/58
-
Series: MegaPressG
-
Technology: Smart Connect
