Megapress 25251 45 deg elbow pipe 1-1/2in

Product Description

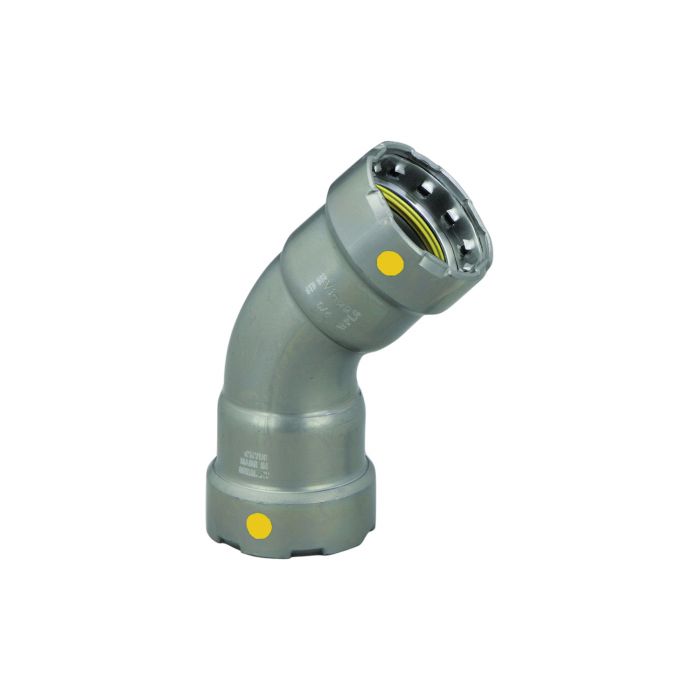

The MEGAPRESS 25251 is a 45-degree elbow pipe fitting, 1-1/2 inch nominal, made from carbon steel for press connections. Designed for gas applications, it is compatible with Schedule 5 to Schedule 40 black iron pipe. This fitting operates within a temperature range of -40 to 180 degrees F, reducing installation time by eliminating the need for cutting oils. It features a press-fit connection type.

• Makes secure press connections in less than seven seconds.
• No oil or heavy threading equipment needed for installation.
• Features patented Viega Smart Connect technology.

Product Highlights

This carbon steel 45-degree elbow is designed for gas applications, compatible with Schedule 5 to Schedule 40 black iron pipe, and features a press-fit connection for quick, clean installation.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25251
• Country of Origin: Germany

Technical Specifications

• Brand: MEGAPRESS
• MPN: 25251
• Manufacturer: VIEGA
• Category: Steel Press Fittings
• Fitting Type: 45 deg Elbow
• Nominal Size: 1-1/2 in
• Temperature Rating: -40 To 180 deg F
• Material: Carbon Steel
• Connection Type: Press
• End Style: P x P
• Angle: 45 Degrees
• Sealing Material: HNBR
• Technology: Smart Connect
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Piping System Compatibility: SCH 5 to SCH 40
• Finish: Zinc Nickel Plated
• Max Operating Pressure: 125 psi
• Resistance Properties: Chemical Resistant, Heat Resistant, Oil Resistant
• Certifications: ABS TYPE APPROVAL, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA B149.1, IAPMO, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
• SKU: 630223
• Reference ID: MEGAPRESS25251
• Sub-Brand: VIEGA MEGAPRESSG
