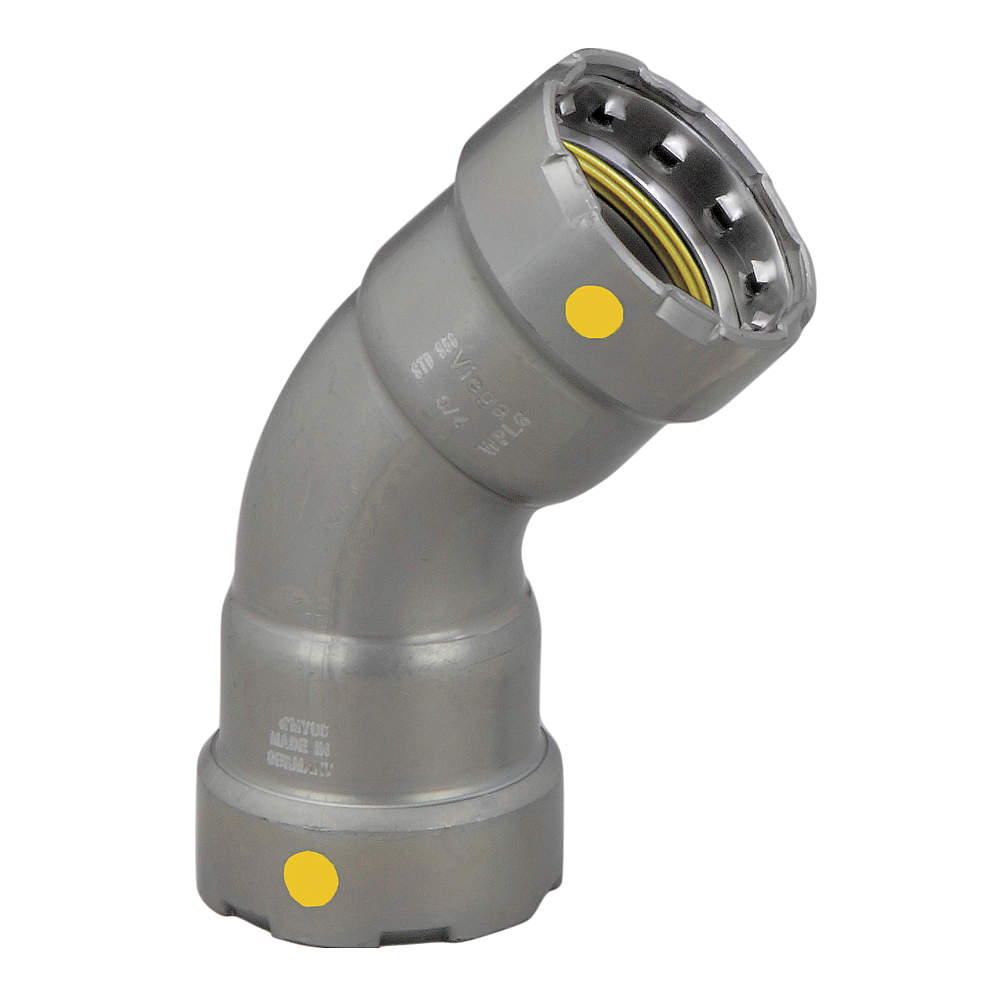

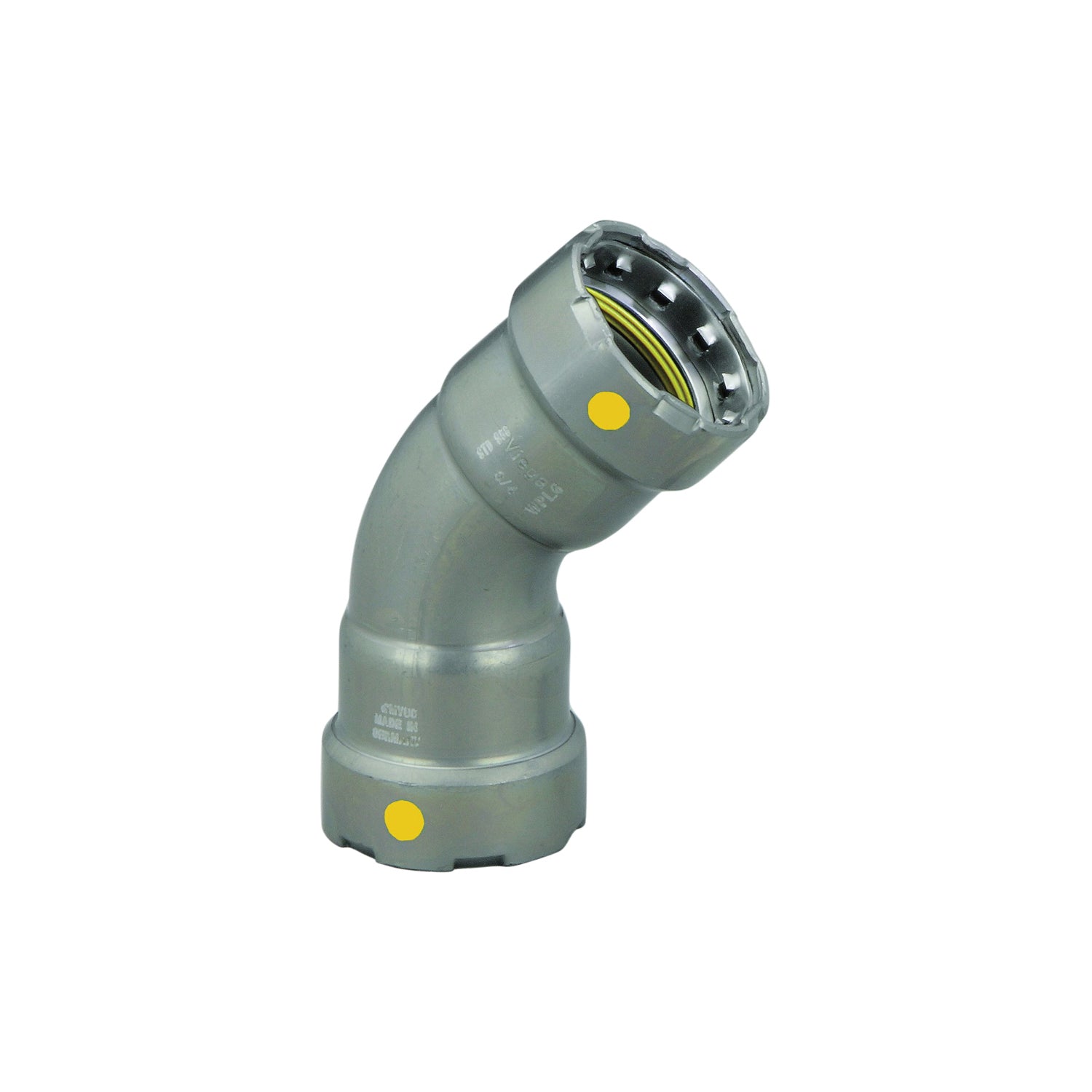

Megapress 25246 45 deg Elbow Pipe 1-1/4in

Product Description

The MEGAPRESS 25246 is a 45-degree pipe elbow designed for press connections in carbon steel piping systems. This fitting is suitable for use with Schedule 5 to Schedule 40 black iron pipe, specifically for gas applications. It facilitates quick installations by eliminating the need for messy cutting oils and heavy threading equipment.

• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed
• Features patented Viega Smart Connect technology

Product Highlights

This carbon steel press fitting ensures efficient and secure connections for gas piping systems.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25246
• Country of Origin: Germany

Technical Specifications

• Manufacturer: VIEGA
• Nominal Size: 1-1/4 in
• Temperature Range: -40 to 180 deg F
• Material: Carbon Steel
• Type: Elbow
• Angle: 45 Degrees
• Connection Type: Press
• Seal Material: HNBR
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Standards and Approvals: ANSI/CSA LC4 | ASME B31 | CSA ICC ES PMG 1036 | NFPA 30/30A/31/54/58
• Finish, Coating: Zinc Nickel Plated
• Max. Operating Pressure: 125 psi
• Resistance Properties: Chemical Resistant, Heat Resistant, Oil Resistant
• Sub-Brand: VIEGA MEGAPRESSG
