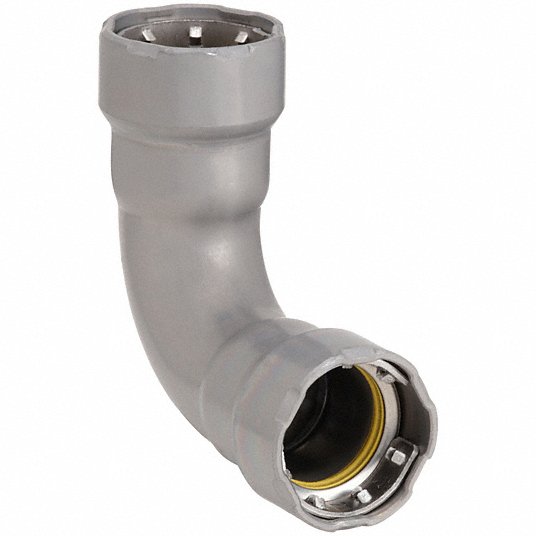

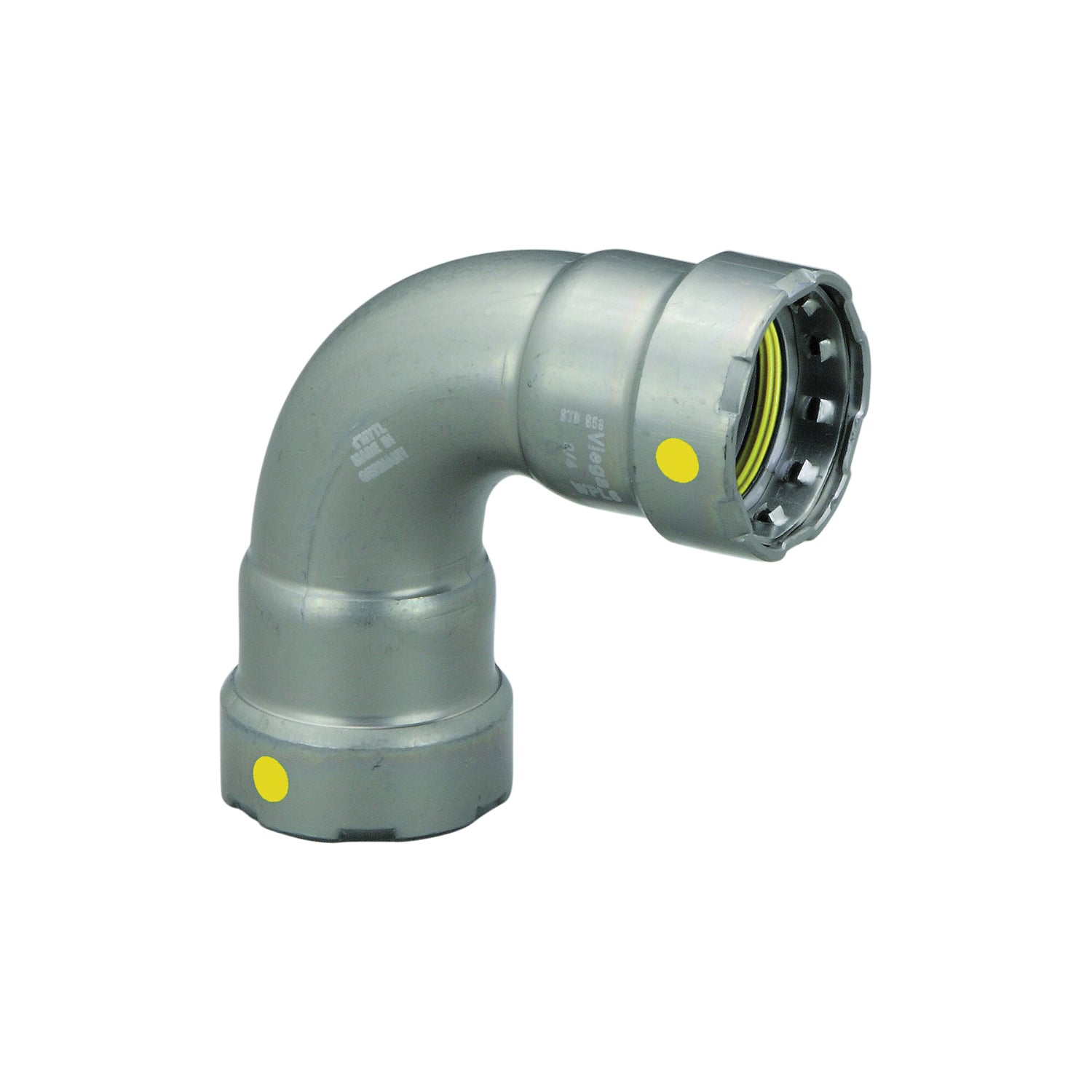

Megapress 25226 90 deg Elbow Pipe 2in Press Carbon Steel

Product Description

The MEGAPRESS 25226 is a 90-degree carbon steel pipe elbow designed for gas applications. This 2-inch nominal press fitting is suitable for use with Schedule 5 to Schedule 40 black iron pipe, offering a temperature rating from -40 to 180 degrees F. It facilitates secure connections in gas piping systems, reducing installation time by eliminating the need for messy cutting oils and heavy threading equipment.

• Makes secure press connections in less than seven seconds.
• Eliminates the need for oil or heavy threading equipment.
• Features patented Viega Smart Connect technology.

Product Highlights

Carbon steel press fitting for gas applications, featuring Smart Connect technology and HNBR sealing for reliable, quick connections.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25226
• Country of Origin: United States

Technical Specifications

• MPN: 25226
• Brand: MEGAPRESS
• Manufacturer: VIEGA
• Category: Steel Press Fittings
• Series: MegaPressG
• SKU: 262900
• Nominal Size: 2 in
• Temperature Range: -40 To 180 deg F
• Fitting Type: 90 deg Elbow
• Material: Carbon Steel
• Angle: 90 Degrees
• Sealing: Smart Connect & HNBR
• Connection Type: Press-fit x Press-fit
• Size: 2 in
• End Style: Press
• Seal Material: HNBR
• Includes: HNBR Sealing Element (Yellow Dot)
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Standards: ABS; ANSI LC4/CSA 6.32; CRN 0A14541.5 A/B; CSA ANSI LC4/CSA 6.32; CSA B149.1; IAPMO; IAPMO ANSI LC4/CSA 6.32; ICC; ICC-ES PMG-1036; IFGC; NFPA 54; NFPA 58
• Connection Size: 2" x 2"
• Lead Law Compliant: NP
• Item Number: 36N786
• Fitting Shape: 90° Elbow
• Finish: Zinc Nickel-Plated
• O-Ring Material: HNBR
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side A Pipe Size: 2 in
• Fitting Side B Connection Type: Press-fit
• Fitting Side B Pipe Size: 2 in
• Resistance Properties: Chemical-Resistant; Heat-Resistant; Oil-Resistant
• For Media Type: Compressed Air; Fuels; Gases
• Maximum Operating Pressure: 125 psi
• Fitting Size: 2 in Pipe x 2 in Pipe
• UNSPSC: 40142317
• UPC: 691514252261
