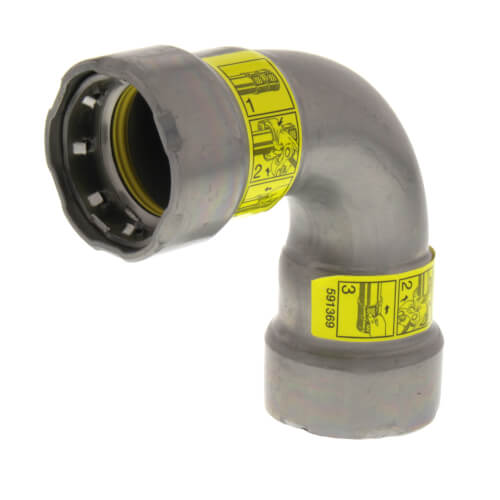

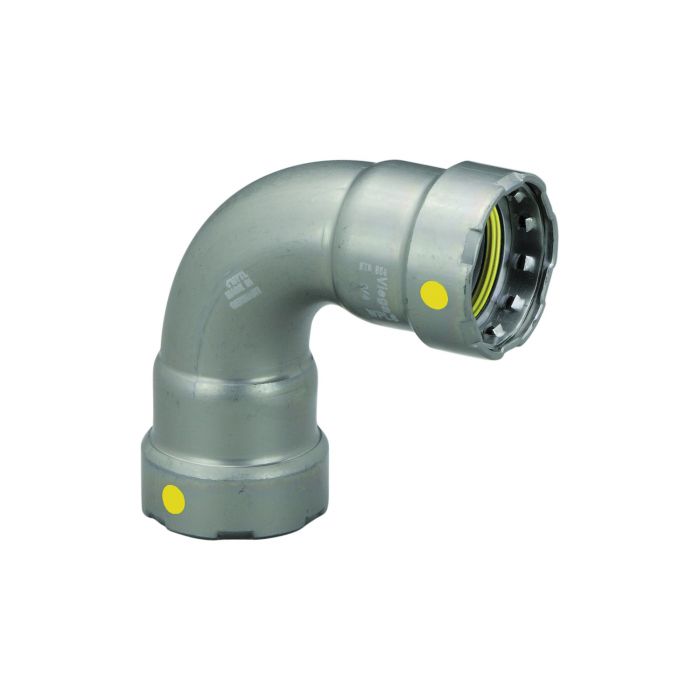

Megapress 25201 90 deg elbow pipe 1/2in

Product Description

The MEGAPRESS 25201 is a 90-degree elbow pipe fitting designed for gas applications. This 1/2 inch carbon steel press fitting features a 90-degree angle and is suitable for use with Schedule 5 to Schedule 40 black iron pipe. It incorporates HNBR sealing elements and Smart Connect technology, ensuring secure connections. The fitting is rated for temperatures from -40 to 180 degrees F and is approved for underground applications.

• Makes secure press connections in less than seven seconds
• No oil or heavy threading equipment needed
• Patented Viega Smart Connect feature

Product Highlights

Carbon steel 90-degree elbow with HNBR seal and Smart Connect technology for gas applications.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25201
• Country of Origin: Germany

Technical Specifications

• Brand: MegaPress
• MPN: 25201
• Manufacturer: Viega
• Category: Steel Press Fittings
• Type: 90 deg Elbow
• Size: 1/2 in
• Connection Type: Press
• Material: Carbon Steel
• Sealing Element: HNBR
• Technology: Smart Connect
• Temperature Rating: -40 to 180 deg F
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Weight: 0.37 lb
• Length: 2.75 in
• Width: 0.75 in
• Height: 2.75 in
• Dimension A: 1.17 in
• Model Number: 6616
• Domestic/Import: Import
• Country of Origin: DE
• Standards and Approvals: ANSI/CSA LC4 | ASME B31 | CSA ICC ES PMG 1036 | NFPA 30/30A/31/54/58
• UPC: 691514252018
