Megapress 25016 Coupling Pipe 1-1/4in Press Carbon Steel With Stop Gas

Product Description

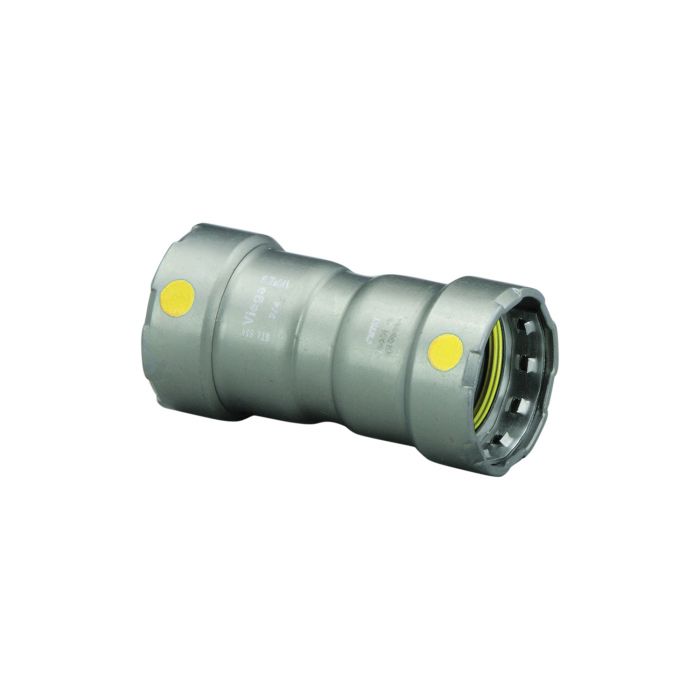

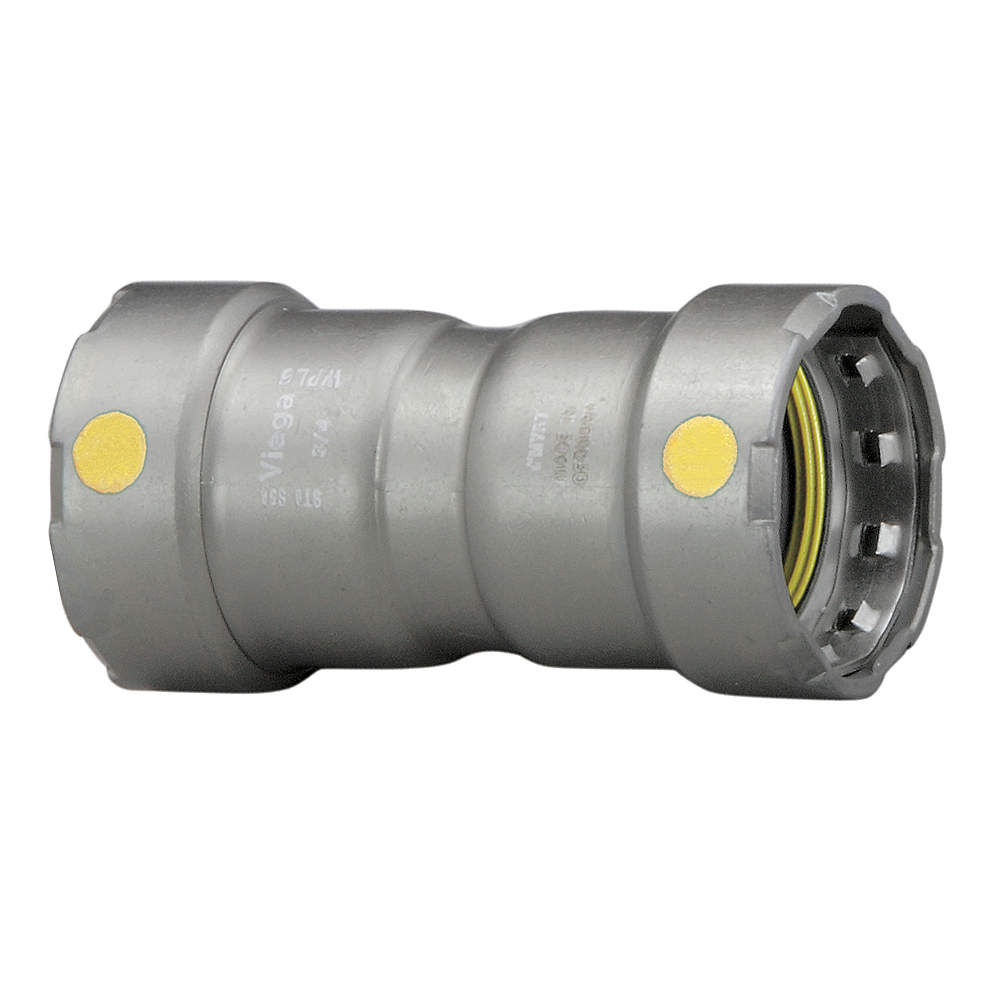

The MEGAPRESS 25016 Pipe Coupling is a carbon steel press fitting designed for gas applications. It features a 1-1/4 inch nominal size and a press end style, suitable for Schedule 5 to Schedule 40 black iron pipe. This coupling operates within a temperature range of -40 to 180 degrees F and measures 4.34 inches in length. It is engineered to reduce installation time by eliminating the need for cutting oils and heavy threading equipment.

• Makes secure press connections in less than seven seconds.
• Eliminates the need for oil or heavy threading equipment.
• Features patented Viega Smart Connect technology.

Product Highlights

Efficient carbon steel press coupling for gas applications, featuring quick, secure connections and Smart Connect technology.

Product Information

Standard Information

• Brand: MEGAPRESS
• Manufacturer Part Number: 25016
• Country of Origin: Germany

Technical Specifications

• MPN: 25016
• Brand: MEGAPRESS
• Manufacturer: VIEGA
• SKU: 262883
• Fitting Type: Coupling
• Nominal Size: 1-1/4 in
• Connection Type: Press
• Material: Carbon Steel
• Temperature Rating: -40 to 180 deg F
• Pipe Compatibility: Schedule 5 to Schedule 40 black iron pipe
• Seal Material: HNBR
• Application: Natural Gas, LP Gas, Diesel Fuel, Compressed Air and Vacuum
• Standards and Approvals: ABS Listed, ANSI LC4/CSA 6.32, ASME B31, CRN OA14541.6, CSA B149.1, FM 1920, GL Listed, LR Certified, NFPA 13/13D/13R/31/54/58
• Dimension A: 0.70 in
• Thread Standard: N/A (Press Fit)
• Pressure Rating: High Pressure
• Product Line: MegaPress G
• Shape: Straight
• Corrosion Resistance: Yes
• Installation: Press Tool Required
• Series: MegaPressG
• Technology: Smart Connect
• Finish/Coating: Zinc Nickel Plated
• Included Center Stop: Rolled Center Stop
• Resistance Properties: Chemical Resistant, Heat Resistant, Oil Resistant
