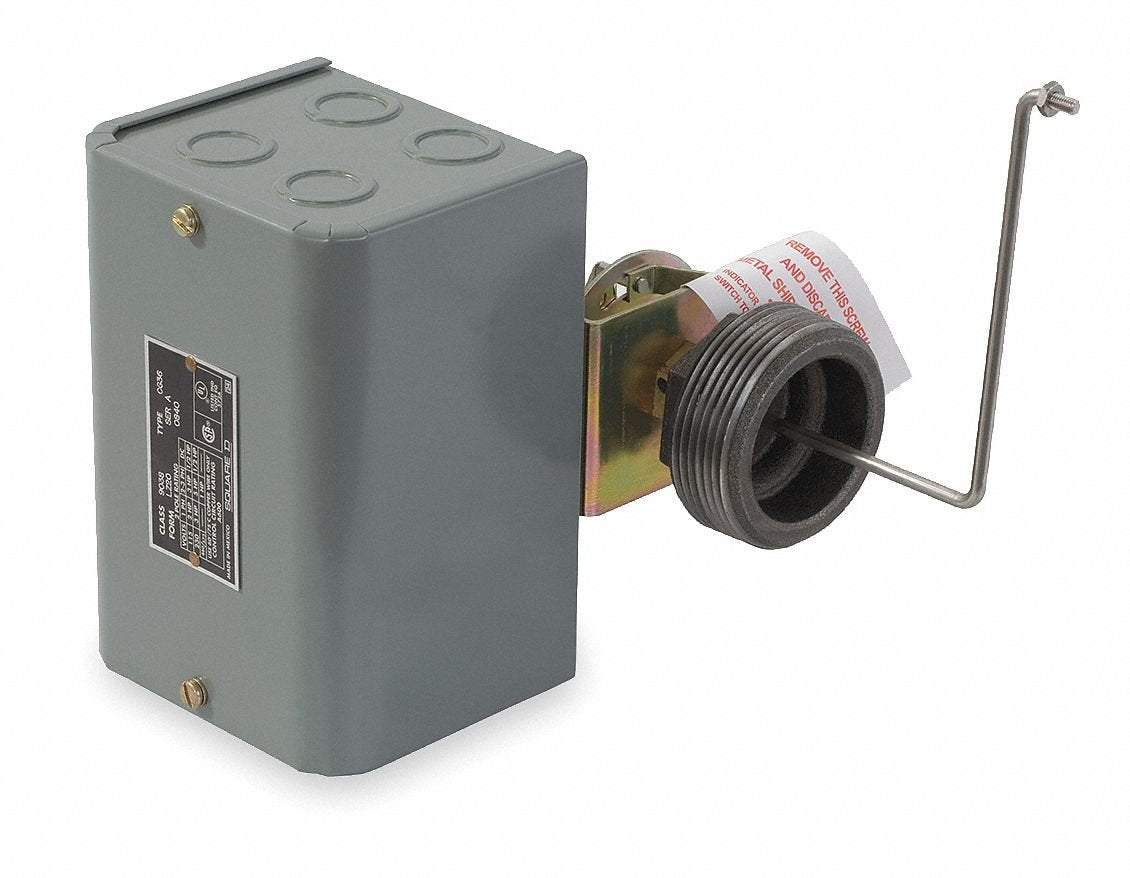

Square D 9038CG36N4LZ20 Tank Liquid 2-Level Switch Close On Rise 2.5 MNPT

Product Description

The Square D 9038CG36N4LZ20 by Schneider Electric is a tank liquid level switch designed for precise control in industrial applications. It is ideal for monitoring liquid levels and controlling pumps in various types of tanks. This unit is mounted horizontally and features a mechanical alternator for non-alternating pump control.

• Close on rise function for effective liquid level control
• Side mounting with 2-1/2 MNPT tank connection
• Stainless steel construction for durability

Product Highlights

This switch supports precise liquid level monitoring. It is easy to mount and designed to withstand various industrial conditions. The float mechanism ensures accurate measurements, making it suitable for demanding environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric (Square D)
• Model: 9038CG36N4LZ20

Technical Specifications

• Switch Function: Close on rise
• Mounting: Side
• Float Position: Left
• Float Rod Angle: 90 degrees
• Float Travel: 6-1/2 inches
• Tank Connection Size: 2-1/2 MNPT
• NEMA Rating: 1
• Contact Form: DPST
• Operating Temp. Range: 250 degrees F max
• Max. Pressure: 50 psi
• Overall Length: 6.84 inches
• Float Material: Stainless steel
• Float Length: 7 inches
• Float Diameter: 2.5 inches
• Stem Material: Stainless steel
• Height: 5.94 inches
• Width: 6.84 inches
• Max. Current: 600 A
• Max. Voltage: 600 V
• HP @ 1 Phase - 120V: 2 HP
• HP @ 1 Phase - 240V: 3 HP
• HP @ 3 Phase - 240V: 5 HP
• Body Material: Steel
• Conduit Size: 8-1/2, 8-3/4
• Electrical Connections: Screw clamp
• Product Certifications: UL listed file E12158, CSA file LR25490
