Mcguire mct150090ncgj Adjustable P-trap 1-1/2 in Lite Commercial

Product Description

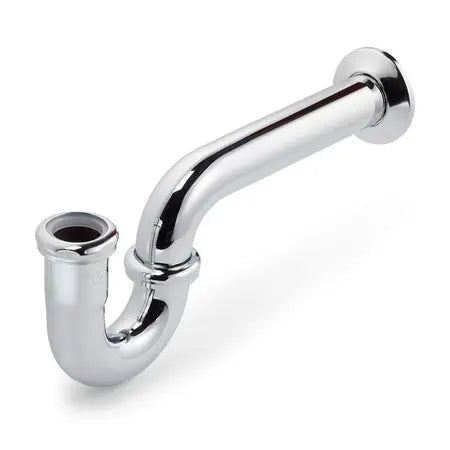

The MCGUIRE mct150090ncgj is a 17-gauge chrome tubular P-trap designed for lite commercial drain applications at bathroom and kitchen sinks. Built to the MCT Light Commercial series standard, this adjustable trap accommodates both 1-1/2 inch and 1-1/4 inch inlet sizes with a 1-1/2 inch outlet, giving installers flexibility across common fixture configurations. The slip-nut connection style speeds installation and simplifies future service access. At 12-1/4 inches in total length with a 9-inch wallbend length, this trap suits standard rough-in depths found in commercial lavatories and kitchen drain setups. It meets ASME A112.18.2/CSA B125.2 certification requirements.

The mct150090ncgj is suited for lite commercial installations in restrooms, break rooms, and kitchen areas where a durable, code-compliant drain trap is required. The adjustable design makes it a practical choice for retrofit work where existing rough-in dimensions vary from new-construction specs. Licensed plumbers working on commercial fixture rough-ins and service calls will find the slip-nut assembly straightforward to fit and tighten without specialty tooling.

Key Features

• Adjustable inlet accepts 1-1/2 inch or 1-1/4 inch connections for flexible fixture fit
• 17-gauge tubular construction for lite commercial service durability
• Chrome finish for corrosion resistance and clean appearance
• Slip-nut connection for tool-friendly installation and serviceability
• No cleanout fitting — streamlined profile for tight under-sink clearances
• Meets ASME A112.18.2/CSA B125.2 industry standards

Compatibility

Designed as an OEM-style replacement or new-install P-trap for lite commercial bathroom sink and kitchen sink drain systems requiring a 1-1/2 inch or 1-1/4 inch by 1-1/2 inch adjustable tubular trap.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the IPC. Shut off the water supply and verify the drain line is clear before removing the existing trap. Hand-tighten slip nuts first to confirm alignment, then snug with channel-lock pliers — avoid over-tightening, which can crack the slip-nut threads. Inspect the trap arm alignment and confirm a proper water seal depth after reassembly.

Technical Specifications

• Size: 1-1/2 inches
• End Size (Inlet): 1-1/2 inches and 1-1/4 inches
• End Size (Outlet): 1-1/2 inches
• Gauge: 17 GA
• Connection Type: Slip Nut
• Finish: Chrome
• Cleanout: No Cleanout
• A Dimension: 5-1/4 inches
• B Dimension: 5 inches
• C to E Dimension: 12-1/4 inches
• Total Length: 12-1/4 inches
• Wallbend Length: 9 inches
• Certifications: ASME A112.18.2/CSA B125.2
• Series: MCT Light Commercial
• Application: Bathroom Sink, Kitchen Sink

Standard Information

• Brand: MCGUIRE
• Manufacturer Part Number: mct150090ncgj
