Mcguire LFST082 Angle Stop 1/2 x 3/8

Product Description

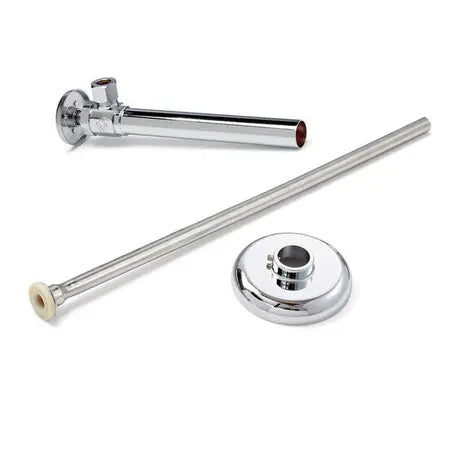

The MCGUIRE LFST082 is an angle supply stop with a 1/2 x 3/8 inch dimension. It features a full-turn brass stem and a 5-inch extension. Constructed from chrome-plated brass, this lead-free valve is compliant with CUPC standards. It's designed for durability and reliable performance in plumbing systems.

• Type: Angle
• Nominal Size: 1/2 Inch x 3/8 Inch
• End Connection: Soldered x Compression

Product Highlights

Angle supply stop with sweat and OD connections. Features a full-turn brass stem and 5-inch extension.

Product Information

Standard Information

• Brand: MCGUIRE
• Manufacturer Part Number: LFST082

Technical Specifications

• Construction Type: Sweat with 5Inch Extension x Compression
• Type: Angle
• Item Name: Angle Supply Stop, Angle Supply Stop Sweat x OD
• Style: Standard Pattern
• Inlet Size: 1/2
• Inlet Type: Sweat
• Outlet Size: 3/8
• Outlet Type: OD
• A_in: 1
• B_in: 6
• C_in: 5-1/2
• Length_in: 6
• Operating Pressure [Min]_psi: 20
• Operating Pressure [Max]_psi: 125
• Operating Temperature Min_": : 40
• Operating Temperature [Max]_: 140
• Maximum Temperature: 180 °F max during high-temperature system flush, 180 °F max during temporary high-temperature system flush
• Material: Brass
• Operation Type: Full turn
• Width-stops_in: 5-1/2
• Handle Type: Full-Turn Wheel Handle
• Body Material: Machined brass
• Handle Material and Plating: Chrome Plated Zinc
• Handle Screw Material: Brass
• Stem Type: Brass
• Stem Material: Brass
• Stem Washer Material: EPDM Peroxide Cured
• Finish: Chrome
• MPN: LFST082-SE069D
• Manufacturer: McGuire
• End to End Distance: 1 Inch
• Inclusions/Features: Full Turn Brass Stem, 5 Inch Extension
• Applicable Standard: CUPC
