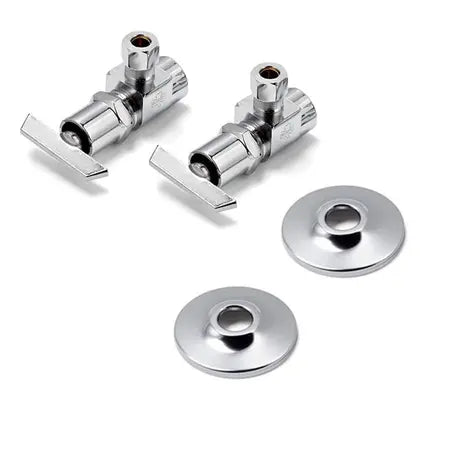

McGuire LFH165LK Heavy Lavatory Supply 3/8 IPS x 3/8

Product Description

The McGuire LFH165LK is a heavy lavatory supply that features a three-eighths inch IPS x three-eighths inch outlet connection. This product operates with a full-turn mechanism and is made from machined brass to ensure durability and reliability.

• Constructed from machined brass for strength
• Includes a flexible twelve inch copper riser
• AB100 compliant and certified to NSF/ANSI/CAN 61 standards

Product Highlights

This lavatory supply line is ideal for residential and commercial bathroom installations, providing secure and leak-proof connections.

Product Information

Standard Information

• Construction Type: Pipe x Compression
• Type: Lavatory

Technical Specifications

• Item Name: Heavy Lavatory Supply 3/8 IPS x OD
• UPC Code: 758062050685
• Operating Pressure (Min): 20 psi
• Operating Pressure (Max): 125 psi
• Operating Temperature (Min): 40 °F
• Operating Temperature (Max): 140 °F
• Material: Brass
• Flange Type: Shallow
• Handle Type: Loose Key
• Riser Type: 12 in Copper Flexible Tube
• Lead Law Compliance Level: Lead Free and Lead Leaching Compliant
