MCGUIRE LF2165CCEA Quarter-Turn Brass Ball Valve Lavatory Supply Kit

Product Description

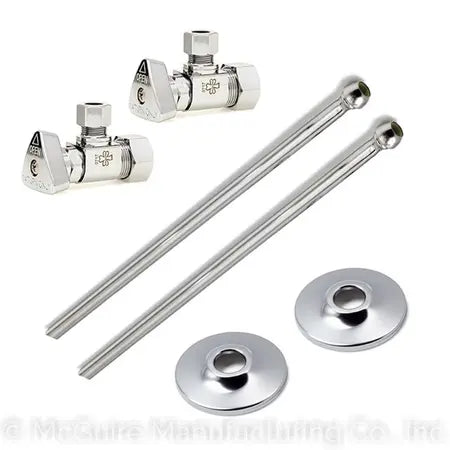

The MCGUIRE LF2165CCEA is a quarter-turn brass ball valve lavatory supply kit designed for sink water supply connections. This kit has a compression x compression construction and includes a quarter-turn brass ball valve, twelve-inch copper flexible risers, and steel shallow flanges.

• Features a quarter-turn operation.
• Includes twelve-inch copper flexible risers.
• Complies with AB100 and NSF/ANSI/CAN 61 standards.

Product Highlights

The LF2165CCEA enables easy water supply control with reliable components crafted from quality materials.

Product Information

Standard Information

• Brand: MCGUIRE
• MPN: LF2165CCEA

Technical Specifications

• Construction Type: Compression x Compression
• Inlet Size: 1/2 inch
• Outlet Size: 3/8 inch
• Operating Pressure Min: 20 psi
• Operating Pressure Max: 125 psi
• Operating Temperature Min: 40 °F
• Operating Temperature Max: 140 °F
• Riser Length: 12 inches
• Material: Brass with chrome-plated components
• Standards: AB100 Compliant, NSF/ANSI/CAN 61
