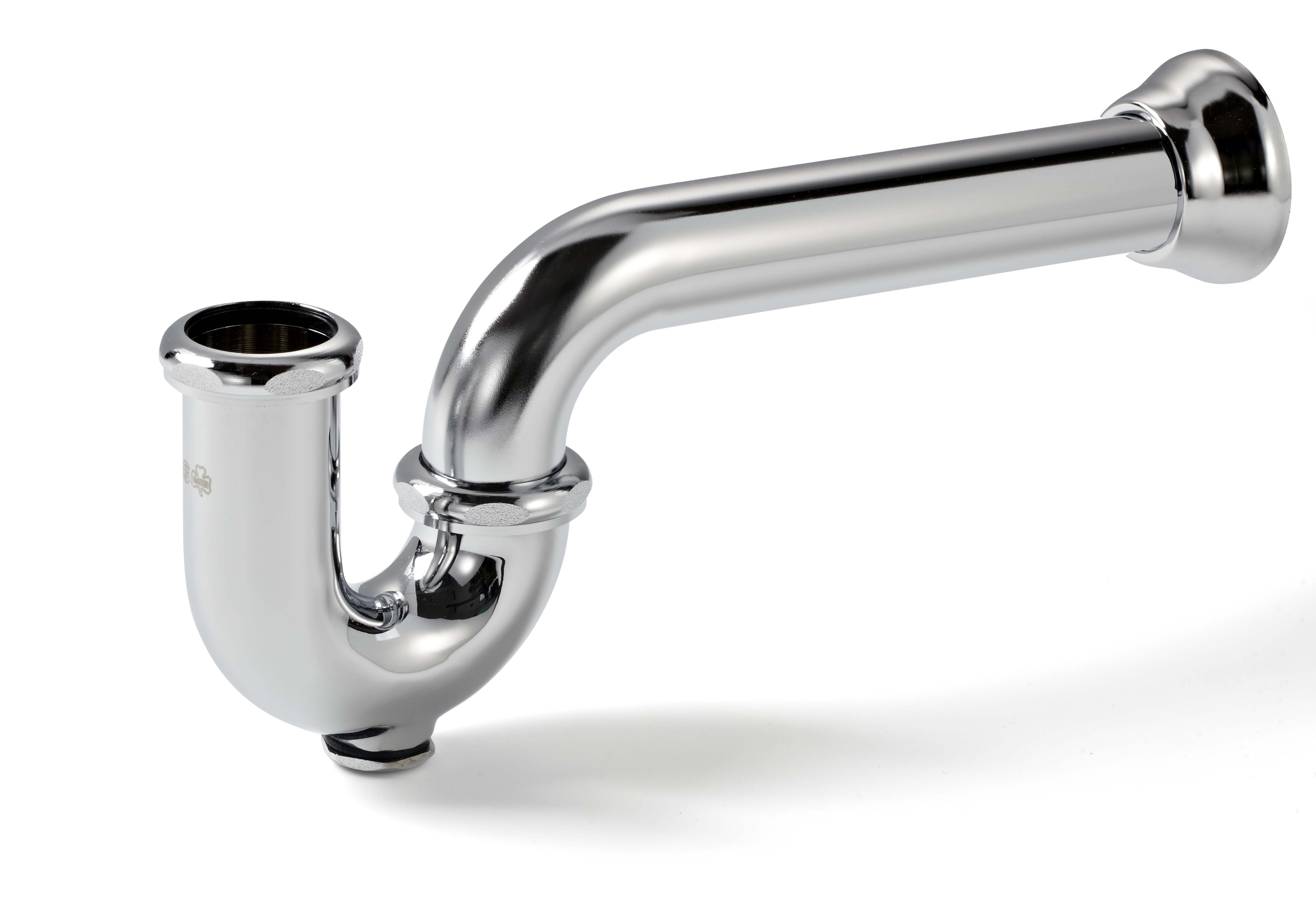

Mcguire 8912CDF Cast Brass P-trap with Cleanout 1-1/2 Inch

Product Description

The MCGUIRE 8912CDF is a heavy cast brass adjustable P-trap designed for professional drain, waste, and vent (DWV) installations in commercial and residential plumbing. Built to Professional Line standards, this trap features a 1-1/2 inch by 1-1/2 inch configuration with a cleanout plug for serviceability without full trap removal. The 17-gauge chrome finish body delivers a durable, corrosion-resistant surface suited to exposed under-sink installations. A center-to-end dimension of 11-1/2 inches provides the clearance depth typical of wall-drain lavatory and sink setups. Slip nuts are included for straightforward field assembly.

This trap is intended for use at lavatory, sink, and similar fixture drain outlets where a chrome-finished, exposed trap is required. The cast brass construction makes it appropriate for commercial restrooms, hospitality fixtures, and institutional settings where durability and appearance are both priorities. The included seamless tubular brass wall bend routes the drain line to the wall stub-out, and the brass deep bell flange covers the wall opening cleanly. Licensed plumbers and experienced pipefitters are the primary installers of this fitting.

Key Features

• Heavy cast brass body in 17-gauge chrome finish for durability in exposed installations
• Adjustable trap design accommodates minor misalignment between fixture outlet and wall drain
• Cleanout plug allows access for clearing obstructions without removing the trap
• 11-1/2 inch center-to-end dimension suits standard wall-drain lavatory rough-in
• Includes slip nuts, seamless tubular brass wall bend, and brass deep bell flange

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/2 inch drain outlets on lavatories, sinks, and similar plumbing fixtures requiring a chrome cast brass P-trap with cleanout access.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and confirm the drain line is clear before beginning trap replacement or installation. Hand-tighten slip nuts first to verify alignment, then snug with channel-lock pliers — avoid over-tightening on the cast body. After installation, run water and inspect all joints for leaks before closing out the work.

Technical Specifications

• Inlet Size: 1-1/2 inches
• Outlet Size: 1-1/2 inches
• Center to End: 11-1/2 inches
• Body Material: Cast brass
• Finish: Chrome
• Wall Thickness: 17 gauge
• Includes: Slip nuts, seamless tubular brass wall bend, brass deep bell flange, cleanout plug
• UPC: 758062010252

Standard Information

• Brand: MCGUIRE
• Manufacturer Part Number: 8912CDF
