Mcguire 8902CDF Cast Brass P-trap Cleanout Plug Chrome

Product Description

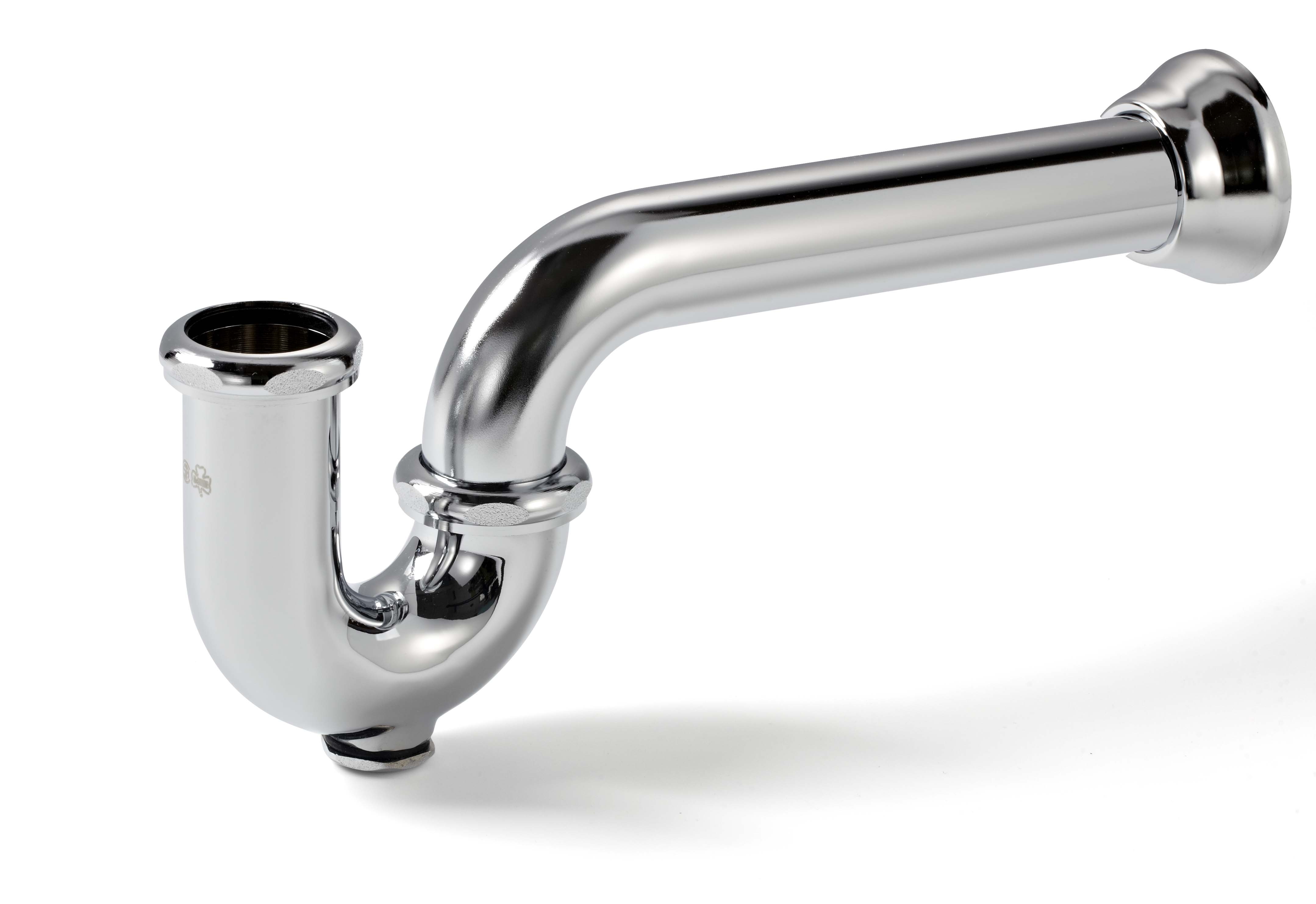

The MCGUIRE 8902CDF is a heavy cast brass adjustable P-trap designed for drain waste applications in commercial and residential plumbing installations. Built from cast brass with a polished chrome finish, this trap measures 1-1/4 inches inlet by 1-1/2 inches outlet with an 11.5-inch center-to-end dimension. The unit includes a cleanout plug for access without full trap removal, and ships complete with slip nuts, a 17-gauge seamless tubular brass wall bend, and a brass deep bell flange. It is part of the McGuire Professional Line and is intended for installation by licensed plumbers.

This P-trap is suited for lavatory and sink drain applications where a deep wall flange is required to conceal supply and drain rough-in at the wall. The adjustable configuration accommodates minor alignment variations in rough-in location, reducing the need for additional fittings. The polished chrome finish is appropriate for exposed under-sink installations in both residential and light commercial settings.

Key Features

• Heavy cast brass body with polished chrome finish for corrosion resistance and finished appearance
• Cleanout plug allows trap servicing without full disassembly
• Adjustable trap accommodates rough-in variation
• 11.5-inch center-to-end dimension suits standard wall rough-in depths
• Includes slip nuts, 17-gauge seamless tubular brass wall bend, and brass deep bell flange

Compatibility

Designed as an OEM-style replacement or new-installation P-trap for 1-1/4-inch to 1-1/2-inch drain applications requiring a deep wall flange, typical of lavatory and sink drain rough-ins.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the applicable local plumbing code and IPC guidelines. Shut off the water supply and clear standing water from the drain before beginning trap replacement or installation. Hand-tighten slip nuts to seat washers properly before applying a final snug turn with pliers to avoid cracking cast fittings. Verify the cleanout plug is fully seated and leak-tested after installation.

Technical Specifications

• Inlet Size: 1-1/4 inches
• Outlet Size: 1-1/2 inches
• Center to End: 11.5 inches
• Body Material: Heavy cast brass
• Finish: Polished chrome
• Wall Bend Gauge: 17 GA seamless tubular brass
• Flange Type: Deep bell flange
• Included Hardware: Slip nuts, wall bend, deep bell flange, cleanout plug
• UPC: 758062009836

Standard Information

• Brand: MCGUIRE
• Manufacturer Part Number: 8902CDF
