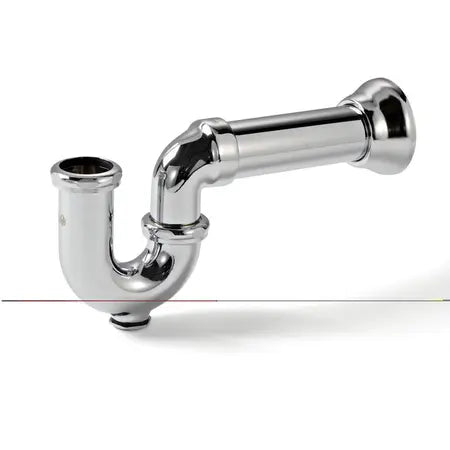

Mcguire 8090CBOS6 P-Trap Boston Adjustable with 6 Inch Extension 1-1/4 x 1-1/2 Inch

Product Description

The MCGUIRE 8090CBOS6 P-Trap is a Boston adjustable trap with a 6-inch extension. It measures 1-1/4 x 1-1/2 inches and features a cleanout plug. Furnished with cast brass slip nuts, ground joint elbow, heavy 17 gauge brass tubular sweat extension, and chrome plated steel bell flange.

• Adjustable P-Trap with 6-inch extension
• Features a cleanout plug for easy maintenance
• Constructed from heavy cast brass with a chrome plated steel bell flange

Product Highlights

This adjustable P-Trap is ideal for bathroom and kitchen sinks. It meets ASME A112.18.2/CSA B125.2 standards.

Product Information

Standard Information

• Brand: MCGUIRE
• Manufacturer Part Number: 8090CBOS6
• Country of Origin: Thailand

Technical Specifications

• Application: Bathroom Sink, Kitchen Sink
• Type: Tubular Sweat Extension Traps
• Item Name: Boston Sweat P-Trap
• Style: Boston Sweat
• UPC Code: 758062008990
• Short Description: 1-1/4 IN x 1-1/2 IN with 6 IN Sweat Ext
• Industry Standards/Certifications: ASME A112.18.2/CSA B125.2
• Connection Type: Sweat
• Finish: Chrome
• Cleanout (Y/N?): Yes
• Gauge (GA): 17
• Size: 1-1/2 IN
• End Size: 1-1/4
• End Size 2: 1-1/2
• A_in: 10
• B_in: 7
• C_in: 3
• C to E_in: 10
• D_in: 4-1/2
• E_in: 5
• Length_in: 10
• Operating Pressure [Min]_psi: 20
• Operating Pressure [Max]_psi: 125
• Operating Temperature Min_": : 40
• Operating Temperature [Max]_: 140
• Maximum Temperature: 180 \n
• F max during temporary High-Temperature System FlushThis material is suitable for use in potable water systems that have a maximum operating temperature of 180 degrees F (82 degrees C). The maximum temperature rating is 180 degrees F max during high-temperature system flush, 180 degrees F max during temporary high-temperature system flush: None
• Material: Cast brass
• Flange Type: Deep Bell
• Flange Material: Steel
• Slip Nut Material: Cast brass
• Brand: McGuire
• MPN: 8090CBOS6
• Trap Material: Cast Brass
• Trap Size: 1-1/4
• Item Diameter: 1 & 1/2
