Mcguire 8089cbos6 Brass Adjustable P-trap with Cleanout

Product Description

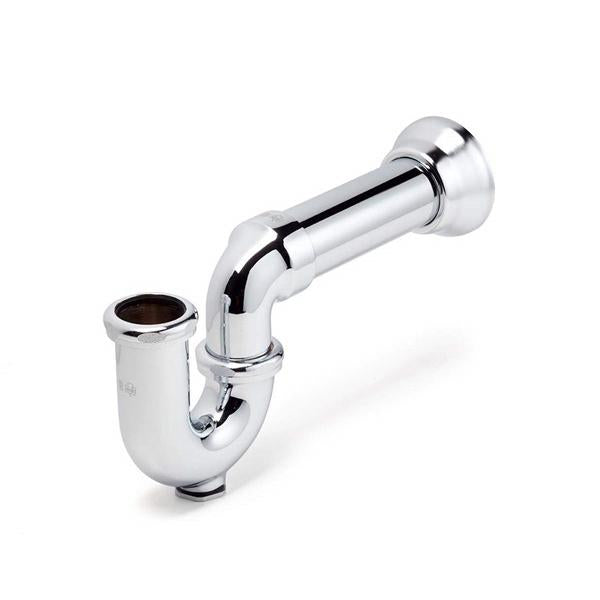

The MCGUIRE 8089cbos6 is a heavy-duty adjustable P-trap designed for commercial drain applications where durability and serviceability are required. Built from chrome plated cast brass, this trap features a cleanout plug for easy access during maintenance without removing the trap assembly. The unit ships complete with a cast brass ground joint elbow, cast brass slip nuts, a 17 gauge seamless tubular soldered extension measuring 6 inches, and a chrome plated steel deep bell flange. The pipe-center to end dimension is 10 inches, and the overall height is 5 inches. Licensed plumbers install this fitting in commercial sink and lavatory drain systems where code-compliant, adjustable trap configurations are specified.

This P-trap is rated for commercial plumbing installations and meets CSA standards for both Canada and the United States. It is suited for use with 1-1/2 inch drain lines in commercial restrooms, service sinks, and similar applications where a soldered inlet connection is required alongside a slip-nut outlet. The deep bell flange provides a finished appearance at the wall or floor connection, making it appropriate for exposed or semi-exposed drain rough-in conditions.

Key Features

• Heavy cast brass body with chrome plated finish for corrosion resistance in commercial environments
• Adjustable trap design accommodates variation in rough-in depth
• Cleanout plug allows drain access without disassembling the trap
• Includes 17 gauge seamless tubular soldered extension at 6 inches for secure, leak-resistant inlet connection
• Cast brass ground joint elbow and cast brass slip nuts included
• Chrome plated steel deep bell flange included for finished wall or floor escutcheon
• CSA certified for commercial use in the US and Canada

Compatibility

Designed for 1-1/2 inch drain lines using a slip nut outlet and soldered inlet connection. Intended for commercial sink and lavatory drain installations requiring an adjustable P-trap configuration. Reducing washer is not included.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code. Shut off the water supply and verify the drain line is clear before beginning work. The soldered extension requires proper sweat-soldering technique with appropriate flux and solder for potable or drain applications. Inspect the ground joint elbow and slip nut connections for proper seating and test for leaks after installation is complete.

Technical Specifications

• Pipe Size: 1-1/2 inches
• Pipe End Type: Slip Nut x Soldered
• Pipe Size to Horizontal Dimension: 10 inches
• Overall Height: 5 inches
• Soldered Extension Size: 6 inches
• Body Material: Chrome Plated Cast Brass
• Included Components: Cleanout Plug, Cast Brass Ground Joint Elbow, Cast Brass Slip Nut, Chrome Plated Steel Deep Bell Flange, 17 Gauge Seamless Tubular Soldered Extension
• Application: Commercial
• Applicable Standard: CSA (Canada and US)
• Weight: 2.5 pounds
• Warranty: 1 Year

Standard Information

• Brand: MCGUIRE
• Manufacturer Part Number: 8089cbos6
