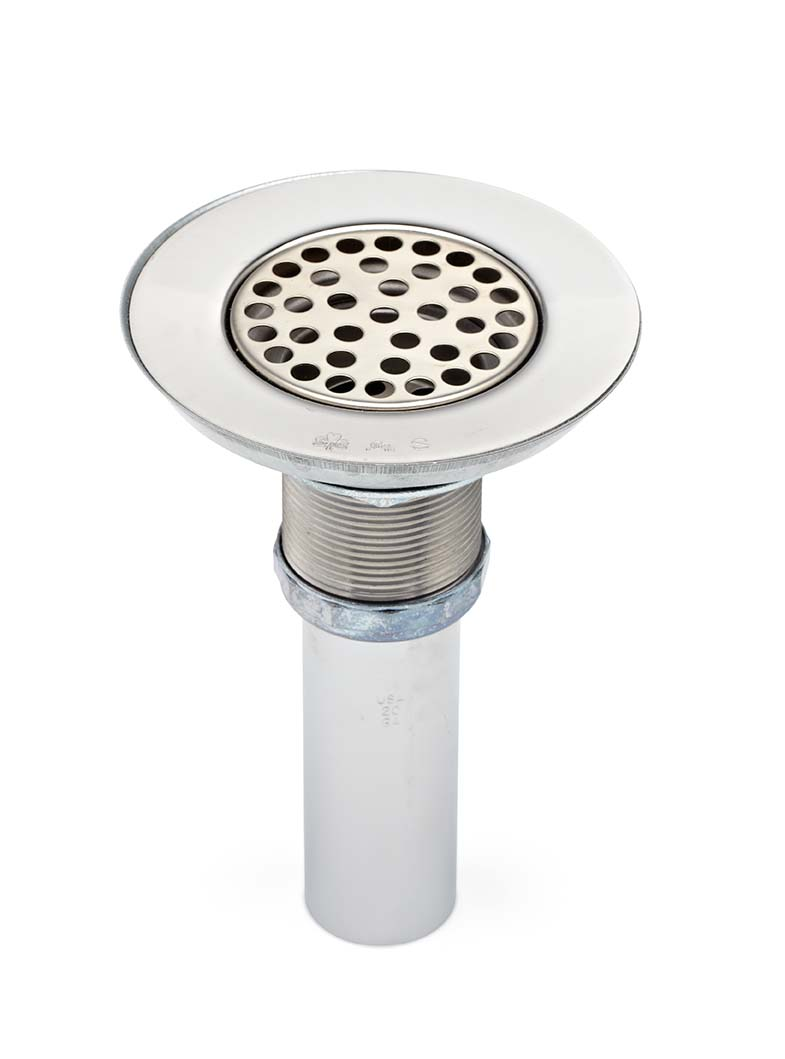

Mcguire 152 3-1/2 Wide Top Grid Sink Strainer

Product Description

The MCGUIRE 152 3-1/2 is a wide top grid sink strainer designed for drain applications in residential and commercial sink installations. Constructed from brass with a chrome plated finish, this strainer features a 3.5-inch grid top opening and a 1-1/2 inch by 4 inch tailpiece. The wide top design improves debris capture and flow management at the drain outlet. Licensed plumbers and experienced fixture installers are the primary users for this type of fitting, which is a direct drain assembly component seated into the sink basin opening.

This grid strainer is suited for kitchen and service sink applications where a wide strainer basket opening is required. The chrome plated brass construction provides corrosion resistance in wet drain environments. The 1-1/2 inch tailpiece connects to standard P-trap assemblies, making it compatible with typical residential and light commercial drain rough-in configurations. It is commonly specified in new fixture installations and replacement service calls where the existing strainer body has corroded or failed.

Key Features

• Wide top grid design with 3.5-inch strainer opening for improved drain coverage
• Brass body construction with chrome plated finish for corrosion resistance
• 1-1/2 inch by 4 inch tailpiece for connection to standard P-trap assemblies
• Chrome plated exterior finish suits exposed under-sink installations

Compatibility

Designed as an OEM-style replacement or new-installation drain fitting for residential and commercial sinks accepting a standard wide top grid strainer with a 1-1/2 inch tailpiece drain connection.

Installation Notes

Installation is performed by a licensed plumber or qualified drain and fixture technician. Shut off the water supply and clear the drain area before beginning strainer removal or installation. Plumber's putty or a compatible gasket should be used to seal the strainer flange to the sink basin per the fixture manufacturer's recommendation. Verify local plumbing code compliance under IPC guidelines for drain fitting connections before finalizing the installation.

Technical Specifications

• Grid Strainer Opening: 3.5 inches
• Tailpiece Size: 1-1/2 inches diameter x 4 inches length
• Body Material: Brass
• Finish: Chrome Plated
• UPC: 758062002110

Standard Information

• Brand: MCGUIRE
• Manufacturer Part Number: 152 3-1/2
