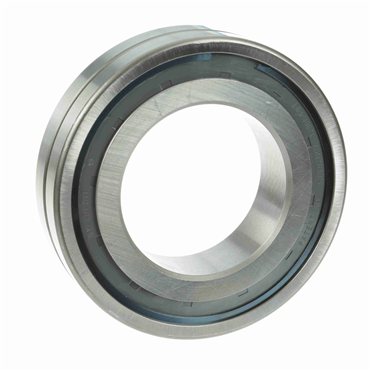

McGill SB22220W33SS SPHERE-ROL Spherical Roller Bearing - 100 mm ID, 180 mm OD, 46 mm Width, Sealed

Product Description

The McGill SB22220W33SS is a spherical roller bearing designed for high performance in various industrial applications. It features a bore diameter of one hundred millimeters, an outer diameter of one hundred eighty millimeters, and a width of forty-six millimeters. The bearing has a straight bore and is sealed to prevent contamination.

• Single row separated spherical rolling elements for better load distribution.
• Integrated oil hole and annular lubrication groove for enhanced lubrication.
• Nylaplate seal on both sides to protect against dust and moisture.

Product Highlights

This product is ideal for applications requiring high load-bearing capacity and durability.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: MEXICO

Technical Specifications

• Series: 22200
• Bore Diameter: 100 mm
• Outside Diameter: 180 mm
• Overall Width: 46 mm
• Weight: 9.85 lbs
• Max RPM: 2500 rpm
• Operating Temperature Range: -30 to 300 °F
• Closure Type: Sealed
