Product Description

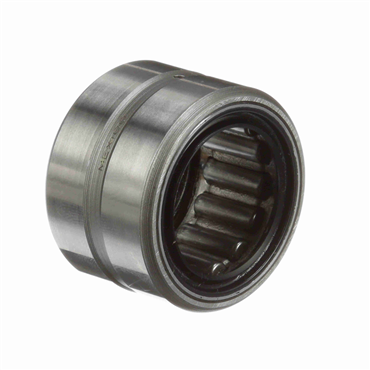

The McGill MR 16 RSS is a needle roller bearing designed for versatile applications. This bearing features a bore diameter of one inch and an outer diameter of one and a half inches, making it suitable for various machinery. It is sealed on both sides to ensure lubrication retention and protection against contaminants.
- Machined race needle bearing for high performance
- Double rubber-lipped seals for effective sealing
- Compatible with MI 12 inner ring
Product Highlights
The MR 16 RSS bearing is ideal for high-speed applications and can operate under harsh conditions, with an operating temperature range from negative twenty to two hundred fifty degrees Fahrenheit.
Product Information
Standard Information
-
Brand: McGill
-
Country of Origin: Mexico
Technical Specifications
-
Bore Diameter: 1.0000 inches
-
Outside Diameter: 1.5000 inches
-
Overall Width: 1.0000 inches
-
Weight: 0.21 lbs
-
Max RPM: 3800 rpm
-
Radial Dynamic Load Capacity: 5840 lbf
-
Radial Static Load Capacity: 7100 lbf
-
Closure Type: Sealed
-
Standards Met: ABMA, ISO
