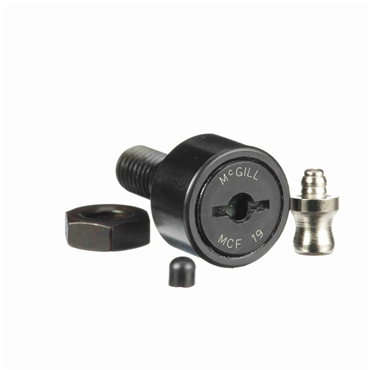

McGill MCFRE 19 Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series

Product Description

McGill's MCFRE19 is part of the Metric CAMROL (MCF) Series and features crowned and flat cam followers. It has a roller diameter of sixteen millimeters and a roller width of eleven millimeters. The stud diameter is eight millimeters with a stud length of sixteen millimeters. This product is unsealed and constructed from bearing steel with a black oxide finish.

• Metric stud type cam follower
• Crowned outside diameter
• Jam nuts and lube fitting included

Product Highlights

This cam follower includes retained (caged) needle rolling elements and a screwdriver slot head type. The eccentric bushing configuration facilitates easy adjustment and installation.

Product Information

Standard Information

• Product Type: Crowned & Flat Cam Followers
• Country Of Origin: United States

Technical Specifications

• Roller Diameter: 16 mm
• Roller Width: 11 mm
• Stud Diameter: 8 mm
• Stud Length: 16 mm
• Maximum RPM: 15500 rpm
• Radial Static Load Capacity: 931 lbf
• Radial Dynamic Load Capacity: 839 lbf
• Finish/Coating: Black Oxide Finish
