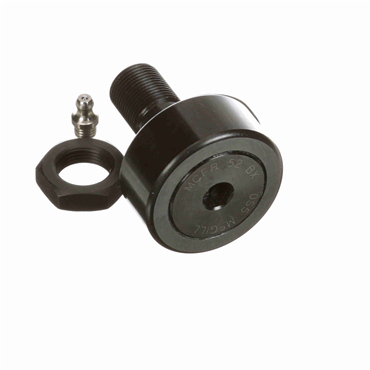

McGill MCFR 52 BX Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series 52 mm Roller Dia 24 mm Roller Width

Product Description

The McGill MCFR 52 BX is a crowned and flat cam follower designed for various applications in the Metric CAMROL (MCF) series. This product features a roller diameter of fifty-two millimeters and a roller width of twenty-four millimeters. The stud diameter is twenty millimeters with a stud length of forty-point-five millimeters. It is unsealed and made from bearing steel, featuring a black oxide finish.

• Metric stud type cam follower
• Cylindrical outside diameter
• Retained needle rolling elements included

Product Highlights

This cam follower is suitable for high-speed operations due to its maximum RPM of three thousand nine hundred. It is ideal for applications requiring reliable operation and strength.

Product Information

Standard Information

• Manufacturer: McGill
• Part Number: MCFR 52 BX

Technical Specifications

• Roller Diameter: 52 mm
• Roller Width: 24 mm
• Stud Diameter: 20 mm
• Stud Length: 40.5 mm
• Maximum RPM: 3900 rpm
• Radial Static Load Capacity: 6700 lbf
• Radial Dynamic Load Capacity: 3991 lbf
• Closure Type: Open
• Finish/Coating: Black Oxide Finish
• Lubrication Hole Location: Stud Side
• CAD Drawing: Download CAD Drawing
