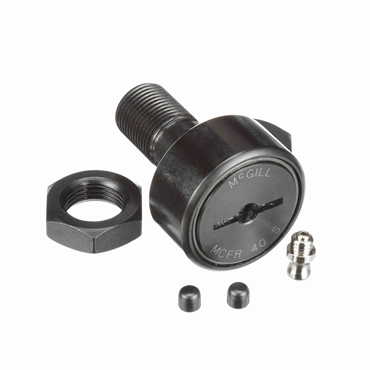

McGill MCFR 40 S Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series 40 mm Diameter 20 mm Width

Product Description

The McGill MCFR40S crowned and flat cam follower is designed for various applications in machinery. This cam follower features a metric design with a roller diameter of forty millimeters and a roller width of twenty millimeters. The product includes sealed bearings, making it suitable for environments where contamination is a concern.

• Metric stud type cam follower
• Crowned outside diameter
• Sealed for better protection

Product Highlights

This cam follower is ideal for use in machinery that requires reliable movement and support. The design includes retained needle rolling elements and a lubricated seal for maintenance ease.

Product Information

Standard Information

• Brand: McGill
• MPN: MCFR 40 S

Technical Specifications

• Series: Metric CAMROL (MCF)
• Weight: 0.6 lbs
• Max Rpm: 5000 rpm
• Head Type: Screwdriver Slot
• Stud Type: MCF - Stud
• Thread Size: M18x1.5
• Closure Type: Sealed
• Roller Diameter: 40 mm
• Roller Width: 20 mm
• Radial Static Load Capacity: 4451 lbf
• Radial Dynamic Load Capacity: 2999 lbf
• Finish Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
• Lubrication Hole Location: Stud Side, Stud End
