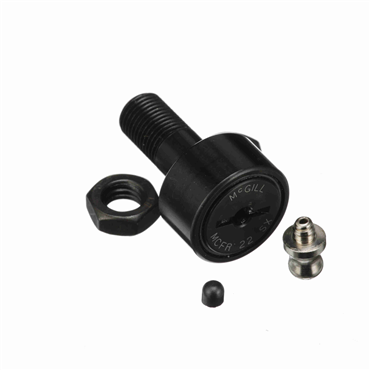

McGill MCFR 22 SX Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series, 22 mm Roller Dia, 12 mm Roller Width, 10 mm Stud Dia, 23 mm Stud Length

Product Description

McGill MCFR 22 SX Crowned & Flat Cam Followers are designed for use in various applications requiring reliable support and rotation. This cam follower features a cylindrical roller design that accommodates axial loads and minimizes friction. The MPN is MCFR 22 SX.

• Metric stud type cam follower
• Sealed design with lubrication
• Black oxide finish for enhanced durability

Product Highlights

This product provides smooth operation and extends service life due to its high-quality bearing materials and construction.

Product Information

Standard Information

• Brand: McGill
• Part Number: 00124410

Technical Specifications

• Series: Metric CAMROL (MCF)
• Roller Diameter: 22 mm
• Roller Width: 12 mm
• Stud Diameter: 10 mm
• Stud Length: 23 mm
• Max RPM: 13500 rpm
• Radial Dynamic Load Capacity: 1169 lbf
• Radial Static Load Capacity: 1360 lbf
• Thread Size: M10x1
• Closure Type: Sealed
• Finish Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
• Lubrication Hole Location: Stud End
