McGill MCFR 22 S Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series 22 mm Roller Dia

Product Description

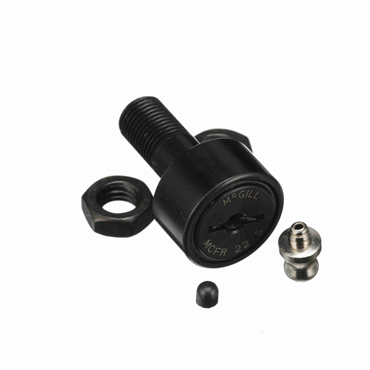

The McGill MCFR22S Cam Follower is part of the Metric CAMROL (MCF) series, designed to provide efficient performance in various applications. This cam follower features a roller diameter of twenty-two millimeters and a roller width of twelve millimeters, making it suitable for demanding environments. The stud diameter is ten millimeters, with a stud length of twenty-three millimeters.

• Metric stud type cam follower.
• Sealed with a LUBRI-DISC® seal.
• Includes jam nuts and a lube fitting.

Product Highlights

Ideal for machinery requiring reliable motion transmission, the MCFR22S ensures longevity and performance.

Product Information

Standard Information

• Brand: McGill
• Part Number: MCFR 22 S

Technical Specifications

• Series: Metric CAMROL (MCF)
• Weight: 0.15 lbs
• Max RPM: 13500 rpm
• Head Type: Screwdriver Slot
• Stud Type: MCF - Stud
• Thread Size: M10x1
• Closure Type: Sealed
• Roller Shape: Crowned
• Roller Diameter: 22 mm
• Roller Material: Bearing Steel, Black Oxide Finish
• Lubrication Hole Location: Stud End
• Radial Static Load Capacity: 1360 lbf
• Radial Dynamic Load Capacity: 1169 lbf
