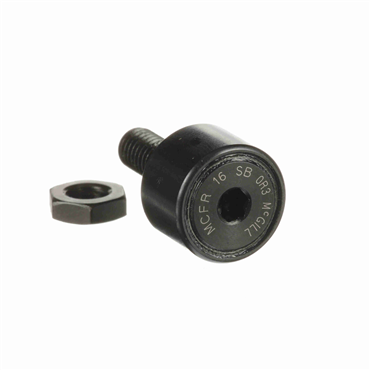

McGill MCFR 16 SB Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series, 16 mm Roller Dia, 11 mm Roller Width, 6 mm Stud Dia, 16 mm Stud Length

Product Description

The McGill MCFR 16 SB is a crowned and flat cam follower designed for precise motion control in various applications. This product features a roller diameter of sixteen millimeters and a roller width of eleven millimeters. The sealed construction enhances durability and reliability. Its needle roller design allows efficient load distribution, ensuring long service life.

• Maximum RPM of nineteen thousand five hundred
• Sealed closure type for protection against contaminants
• Hex hole head type for secure mounting

Product Highlights

This cam follower is suitable for both crowned and flat applications, offering versatility in operation.

Product Information

Standard Information

• Brand: McGill
• MPN: MCFR 16 SB

Technical Specifications

• Series: Metric CAMROL (MCF)
• Weight: 0.07 lbs
• Max RPM: 19500 rpm
• Head Type: Hex Hole
• Stud Type: Standard
• Thread Size: M6X1
• Closure Type: Sealed
• Roller Diameter: 16 mm
• Roller Width: 11 mm
• Roller Shape: Crowned
• Radial Static Load Capacity: 528 lbf
• Radial Dynamic Load Capacity: 1950 lbf
• Bearing Material: Bearing Steel with Black Oxide Finish
• Lubrication Hole Location: Stud Side
• Manufacturer Catalog Number: MCFR 16 SB
