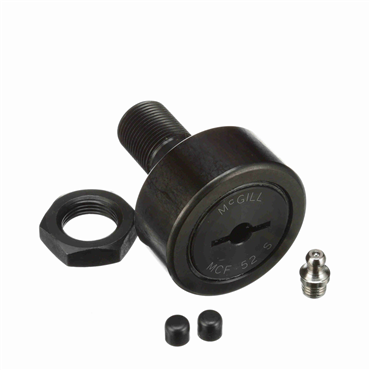

McGill MCF 52 S Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series

Product Description

The McGill MCF 52 S is a crowned and flat cam follower from the Metric CAMROL (MCF) Series. It features a roller diameter of fifty-two millimeters and is designed for various applications in machinery and equipment.

• Metric stud type cam follower
• Sealed lubrication with LUBRI-DISC® seal
• Needle rolling elements for smooth operation

Product Highlights

This cam follower is suitable for dynamic load applications with a radial dynamic load capacity of five thousand seven hundred seventy-six pounds.

Product Information

Standard Information

• Brand: McGill
• Part Number: MCF 52 S

Technical Specifications

• Series: Metric CAMROL (MCF)
• Roller Diameter: 52 mm
• Roller Width: 24 mm
• Stud Diameter: 20 mm
• Stud Length: 40.5 mm
• Weight: 1.17 lbs
• Max RPM: 2600 rpm
• Thread Size: M20x1.5
• Closure Type: Sealed
• Finish Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
• Radial Static Load Capacity: 10499 lbf
• Radial Dynamic Load Capacity: 5776 lbf
