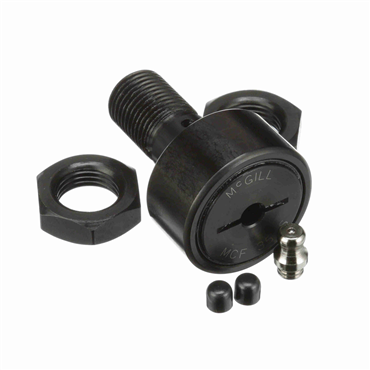

McGill MCF 35 S Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series, 35 mm Roller Dia, 18 mm Roller Width, 16 mm Stud Dia

Product Description

The McGill MCF 35 S is a crowned and flat cam follower designed for various applications. This cam follower features a metric stud type and is part of the Metric CAMROL series. It includes a sealed lubrication system and is suitable for high-speed operations up to 4200 RPM.

• Crowned outside diameter for smooth motion
• Needle roller bearing elements for efficient load handling
• Sealed closure type to protect from contaminants

Product Highlights

The McGill MCF 35 S offers reliable performance in demanding conditions, making it ideal for machinery and equipment requiring durable cam followers.

Product Information

Standard Information

• Brand: McGill
• Order Increment: 1

Technical Specifications

• Roller Diameter: 35 mm
• Roller Width: 18 mm
• Stud Diameter: 16 mm
• Stud Length: 32.5 mm
• Weight: 0.5 lbs
• Max RPM: 4200 rpm
• Thread Size: M16x1.5
• Radial Dynamic Load Capacity: 3815 lbf
• Radial Static Load Capacity: 6407 lbf
