McGill MCF 30 SBX Crowned & Flat Cam Followers - Metric CAMROL (MCF) Series, 30 mm Roller Dia, 14 mm Roller Width, 12 mm Stud Dia, 25 mm Stud Length

Product Description

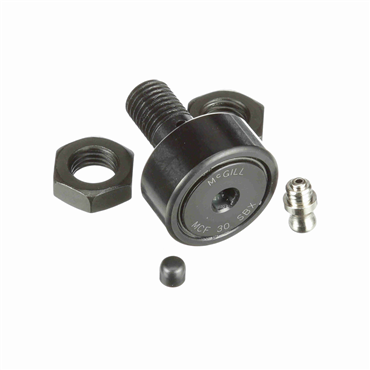

The McGill MCF 30 SBX is a crowned and flat cam follower from the Metric CAMROL series. This product features a roller diameter of thirty millimeters and a roller width of fourteen millimeters. It has a stud diameter of twelve millimeters and a stud length of twenty-five millimeters. The unit is sealed for enhanced durability, made from bearing steel with a black oxide finish.

• Designed for metric applications
• High load capacities: static load of 3440 lbf and dynamic load of 2491 lbf
• Maximum rotational speed of 6400 rpm

Product Highlights

Ideal for various machinery requiring reliable motion and load management.

Product Information

Standard Information

• Brand: McGill
• MPN: MCF 30 SBX

Technical Specifications

• Series: Metric CAMROL (MCF)
• Weight: 0.26 lbs
• Head Type: Hex Hole
• Stud Type: MCF - Stud
• Closure Type: Sealed
• Roller Shape: Cylindrical
• Thread Size: M12x1.5
• Lubrication Hole Location: Stud Side
• Radial Static Load Capacity: 3440 lbf
• Radial Dynamic Load Capacity: 2491 lbf
• Maximum RPM: 6400 rpm
• Roller Diameter: 30 mm
• Roller Width: 14 mm
• Stud Diameter: 12 mm
• Stud Length: 25 mm
• Finish/Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
