Product Description

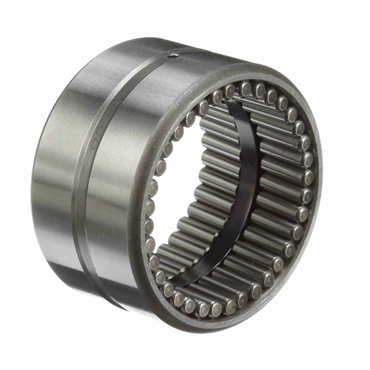

The McGill GR26 Needle Roller Bearing features a bore diameter of one point six two five zero inches and an outer diameter of two point one eight seven five inches. This bearing is designed for high load applications and offers excellent performance in various industrial settings.
- Constructed without an inner ring to reduce weight.
- Includes a full complement of needle rolling elements for improved support.
- Features an annular lubrication groove for efficient lubrication.
Product Highlights
Engineered for durability and strength, the GR26 is ideal for use in guiderol applications where space is limited.
Product Information
Standard Information
-
Brand: McGill
-
Country of Origin: Mexico
Technical Specifications
-
MPN: GR26
-
Bore Diameter: 1.6250 in
-
Outside Diameter: 2.1875 in
-
Width: 1.2500 in
-
Weight: 0.51 lbs
-
Max RPM: 3700 rpm
-
Radial Dynamic Load Capacity: 7500 lbf
-
Operating Temperature Range: -20 to 250 °F
-
Precision Rating: RBEC-1
-
Standards Met: ABMA, ISO
-
Compatible Inner Ring: MI 22 4S
-
Manufacturer Product Page: Link
