Product Description

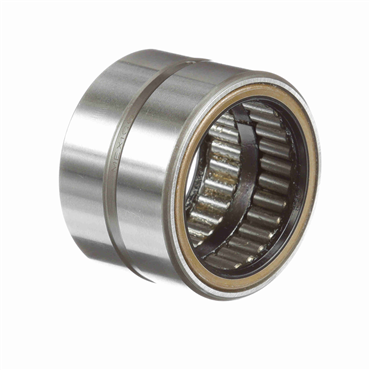

The McGill GR22SS Needle Roller Bearing features a bore of one point three seven five inches and an outside diameter of one point eight seven five inches. It is designed to perform efficiently in various applications. This needle bearing supports high speeds and provides reliable operation under a range of temperatures.
- Machined race needle bearing with a full complement of center-guided needle elements.
- Double rubber-lipped seals enhance durability and protect against contamination.
- Annular lubrication groove for optimal performance.
Product Highlights
This bearing is built for applications needing high radial loads and moderate speeds.
Product Information
Standard Information
-
Brand: McGill
-
Country of Origin: Mexico
Technical Specifications
-
Series: Guiderol Bearing
-
Bore Diameter: 1.3750 in
-
Outside Diameter: 1.8750 in
-
Overall Width: 1.2500 in
-
Weight: 0.4 lbs
-
Max RPM: 2800 rpm
-
Operating Temperature Range: -20 to 250 °F
-
Radial Static Load Capacity: 18600 lbf
-
Radial Dynamic Load Capacity: 7100 lbf
-
Precision Rating: RBEC-1
-
Number of Rows: 1
-
Seal Material: Rubber Lip
-
Lubrication Hole Type: Lubrication Groove & Hole
