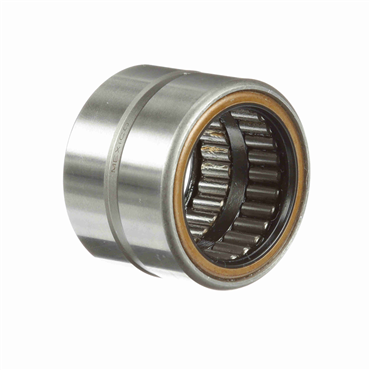

McGill GR20SS GR 20 SS Needle Roller Bearing - 1.2500 in Bore, 1.7500 in OD, 1.2500 in Width, Sealed - Both Sides

Product Description

The McGill GR20SS is a needle roller bearing designed for high-performance applications. With a bore size of one point two five inches and an outer diameter of one point seven five inches, this bearing is suitable for a variety of uses in machinery requiring reliable rotation. It features a sealed design on both sides to prevent contaminants from entering, ensuring longevity and reliability.

• Full complement of center-guided needle rolling elements.
• Double rubber-lipped seals for extra protection.
• High maximum RPM capacity of three thousand fifty RPM.

Product Highlights

This bearing is ideal for operations requiring precision and durability. It meets ABMA and ISO standards, making it compatible with various industrial applications.

Product Information

Standard Information

• Brand: McGill
• Country of Origin: Mexico

Technical Specifications

• Bore Diameter: 1.2500 in
• Outside Diameter: 1.7500 in
• Overall Width: 1.2500 in
• Weight: 0.34 lbs
• Max RPM: 3050 rpm
• Operating Temperature Range: -20 to 250 °F
• Radial Dynamic Load Capacity: 6500 lbf
• Radial Static Load Capacity: 17000 lbf
