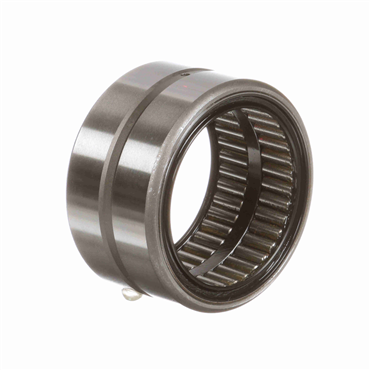

McGill GR 40 RSS Needle Roller Bearing - 2.5000 in Bore, 3.2500 in OD, 1.7500 in Width, Sealed - Both Sides

Product Description

The McGill GR 40 RSS needle roller bearing, MPN GR40RSS, features a bore size of two point five inches and an outer diameter of three point twenty-five inches. This product is designed with sealed sides to enhance functionality and longevity. It is ideal for applications that require reduced friction and efficient performance.

• Full complement of center-guided needle rolling elements
• Protected by double rubber-lipped seals
• Machined race for superior durability

Product Highlights

This bearing is built for reliability and efficiency in a wide range of industrial applications.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: Mexico

Technical Specifications

• MPN: GR40RSS
• Bore Diameter: 2.5000 in
• Outside Diameter: 3.2500 in
• Overall Width: 1.7500 in
• Number Of Rows: 1
• Cage Material: No retainer
• Seal Material: Rubber Lip
• Weight: 1.37 lbs
• Radial Dynamic Load Capacity: 16200 lbf
• Radial Static Load Capacity: 54500 lbf
• Max Rpm: 1530 rpm
• Operating Temperature Range: -20 to 250 °F
• Closure Type: Sealed
• Product Type: Needle Roller Bearings
• Manufacturer Product Page: Link
• CAD Drawing: Download
