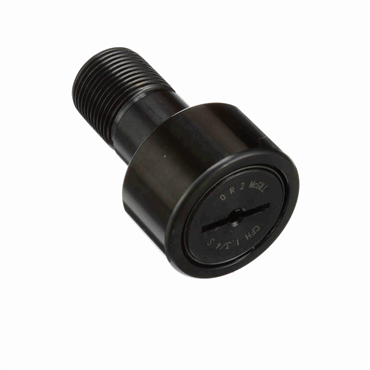

McGill CFH 1 3/4 S Crowned & Flat Cam Followers - Heavy Stud CAMROL Series

Product Description

The McGill CFH 1 3/4 S is a crowned and flat cam follower. It is part of the Heavy Stud CAMROL series. This cam follower features a roller diameter of one and three-quarters inches and a roller width of one inch. The sealed design and the use of bearing steel make it reliable for various applications.

• Heavy stud design for durability
• Sealed for protection against contaminants
• Needle rollers for smooth operation

Product Highlights

The McGill CFH 1 3/4 S cam follower is designed for heavy loads while ensuring effective lubrication and a long service life.

Product Information

Standard Information

• Brand: McGill
• MPN: CFH 1 3/4 S

Technical Specifications

• Series: Heavy Stud CAMROL
• Weight: 1.00 lbs
• Max RPM: 2200 rpm
• Head Type: Screwdriver Slot
• Stud Type: Heavy Stud
• Thread Size: 1-14
• Closure Type: Sealed
• Roller Shape: Cylindrical
• Roller Width: 1.0000 in
• Roller Diameter: 1-3/4 in
• Roller Material: Bearing Steel, Black Oxide Finish
• Lubrication Hole Location: Stud Side
• Radial Static Load Capacity: 15840 lbf
• Radial Dynamic Load Capacity: 6385 lbf
