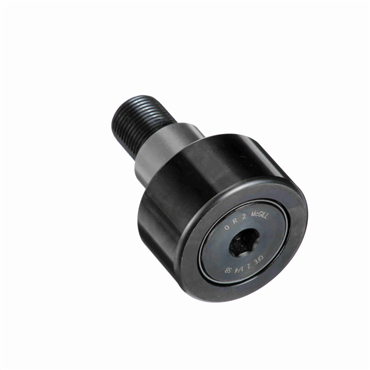

McGill CFE 2 1/4 SB Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

The McGill CFE 2 1/4 SB is a crowned and flat cam follower designed for various applications. It features a roller diameter of two inches and a quarter with a width of one inch and a quarter. This cam follower is suitable for standard stud types and includes a hex hole for secure attachment. It is made from bearing steel with a black oxide finish that increases durability and resistance to wear.

• Stud type cam follower for reliable operation
• Sealed design for enhanced lubrication retention
• Suitable for loads up to 8200 lbf

Product Highlights

The cam follower is ideal for applications needing efficient load distribution and minimal friction.

Product Information

Standard Information

• Brand: McGill
• Country of Origin: Mexico

Technical Specifications

• Product Type: Crowned & Flat Cam Followers
• Roller Diameter: 2-1/4 inches
• Roller Width: 1.2500 inches
• Stud Diameter: 0.7500 inches
• Stud Length: 2.0000 inches
• Max RPM: 1300 rpm
• Radial Static Load Capacity: 8200 lbf
• Radial Dynamic Load Capacity: 8090 lbf
• Thread Size: 7/8-14
• Finish Coating: Black Oxide Finish
• Lubrication Hole Location: Stud Side
