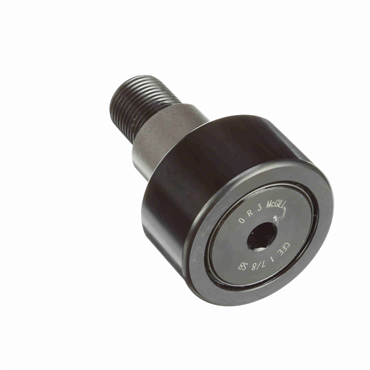

McGill CFE 1 7/8 SB Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

The McGill CFE 1 7/8 SB is a crowned and flat cam follower from the CAMROL (CF) series. It features a roller diameter of one point eight seven five inches, making it suitable for various applications. This cam follower is designed for durability and includes a sealed closure type. Its construction includes bearing steel with a black oxide finish for enhanced resistance.

• Maximum RPM: 2000
• Radial Dynamic Load Capacity: 6385 lbf
• Stud type cam follower with needle rolling elements

Product Highlights

This product provides efficient movement and stability in mechanical assemblies.

Product Information

Standard Information

• Brand: McGill
• Manufacturing Country: Mexico

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 1.00 lbs
• Max RPM: 2000 rpm
• Head Type: Hex Hole
• Stud Type: CF - Standard Stud
• Thread Size: 3/4-16
• Closure Type: Sealed
• Roller Diameter: 1-7/8 in
• Roller Width: 1.0000 in
• Roller Material: Bearing Steel, Black Oxide Finish
• Radial Static Load Capacity: 6000 lbf
• Radial Dynamic Load Capacity: 6385 lbf
