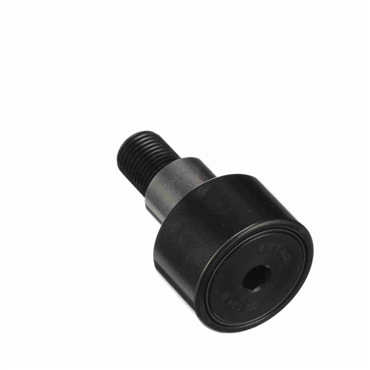

McGill CFE 1 1/4 SB Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

The McGill CFE 1 1/4 SB is a crowned and flat cam follower designed for a variety of applications. The MPN is CFE 1 1/4 SB, which indicates its dimensions and specifications. This cam follower features a roller diameter of one and one-quarter inches and a roller width of three-fourths of an inch. It uses needle rolling elements for smooth operation and is equipped with a sealed LUBRI-DISC seal for maintenance-free lubrication.

• Stud type cam follower
• Needle rollers for efficient load distribution
• Hex hole and eccentric configuration for secure fit

Product Highlights

Robust construction makes this cam follower suitable for various environments.

Product Information

Standard Information

• Brand: McGill
• Country of Origin: Mexico

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 0.395 lbs
• Max RPM: 3100 rpm
• Head Type: Hex Hole
• Stud Type: CF - Standard Stud
• Thread Size: 1/2-20
• Closure Type: Sealed
• Radial Dynamic Load Capacity: 3930 lbf
• Radial Static Load Capacity: 2300 lbf
