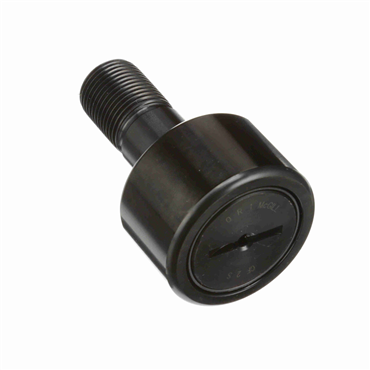

McGill CF2S Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

The McGill CF2S is a crowned and flat cam follower from the Inch CAMROL (CF) series. It features a roller diameter of two inches and a roller width of one point two five inches. This cam follower is designed with a stud diameter of three fourths of an inch and a stud length of two inches. The unit is sealed and constructed from bearing steel with a black oxide finish.

• Stud type cam follower
• Cylindrical outside diameter
• Needle rolling elements

Product Highlights

This cam follower is suitable for various applications where precision and durability are essential. The sealed design prevents contamination and extends the life of the bearing.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: MEXICO

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 1.35 lbs
• Max RPM: 1400 rpm
• Head Type: Screwdriver Slot
• Stud Type: CF - Standard Stud
• Thread Size: 7/8-14
• Closure Type: Sealed
• Product Type: Crowned & Flat Cam Followers
• Roller Shape: Cylindrical
• Roller Diameter: 2 in
• Roller Material: Bearing Steel with Black Oxide Finish
• Radial Static Load Capacity: 8200 lbf
• Radial Dynamic Load Capacity: 8090 lbf
