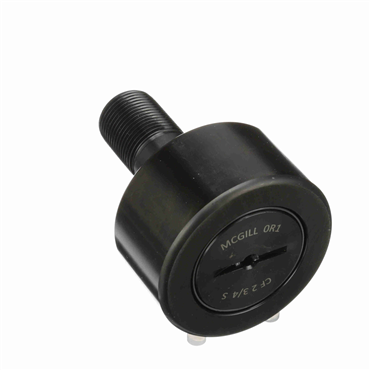

McGill CF23/4 CF 2 3/4 Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

The McGill CF23/4 is a crowned and flat cam follower designed for various applications. With a roller diameter of two and three-fourths inches and a width of one and one-half inches, this cam follower features a stud diameter of one inch and a stud length of two and one-quarter inches. It is made from bearing steel and has a black oxide finish for enhanced durability.

• Stud type cam follower
• Needle rolling elements
• Cylindrical roller shape

Product Highlights

This cam follower is suitable for use in both standard and demanding conditions. Its construction helps reduce friction, improving performance over time.

Product Information

Standard Information

• Country of Origin: Mexico
• Minimum Order Quantity: 1

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 2.97 lbs
• Head Type: Screwdriver Slot
• Stud Type: CF - Standard Stud
• Maximum RPM: 1050 rpm
• Stud Length: 2.2500 in
• Thread Size: 1-14
• Closure Type: Open
• Product Type: Crowned & Flat Cam Followers
• Roller Diameter: 2-3/4 in
• Roller Width: 1.5000 in
• Stud Diameter: 1.0000 in
• Radial Static Load Capacity: 10300 lbf
• Radial Dynamic Load Capacity: 11720 lbf
• Lubrication Hole Location: Stud Side
• Finish/Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
