McGill CF21/2 CF 2 1/2 Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

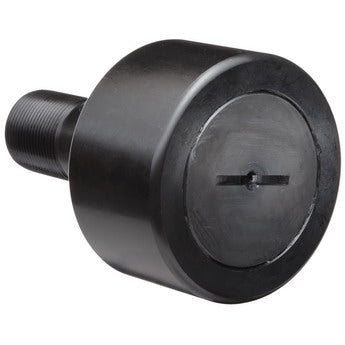

The McGill CF21/2 is a crowned and flat cam follower designed for reliable performance. This product features a roller diameter of two and one-half inches, making it suitable for various applications in machinery. The cam follower is made of bearing steel with a black oxide finish, providing durability and resistance to wear.

• Stud type cam follower
• Standard screw driver slot
• Needle rolling elements

Product Highlights

This cam follower is effective for handling radial loads and is suitable for a range of machinery where smooth operation is necessary.

Product Information

Standard Information

• Brand: McGill
• Country of Origin: Mexico

Technical Specifications

• MPN: CF21/2
• Product Type: Crowned & Flat Cam Followers
• Roller Diameter: 2.5000 in
• Roller Width: 1.5000 in
• Stud Diameter: 1.0000 in
• Stud Length: 2.2500 in
• Max RPM: 1100 rpm
• Radial Dynamic Load Capacity: 11720 lbf
• Radial Static Load Capacity: 16450 lbf
• Finish Coating: Black Oxide Finish
