Product Description

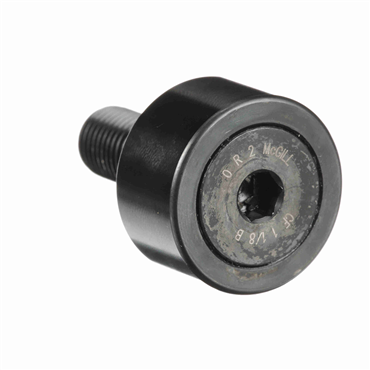

The McGill CF11/8B is a crowned and flat cam follower from the CAMROL series. This product features a roller diameter of one point one two five inches and a roller width of zero point six two five inches. The stud diameter measures zero point four three seven five inches, while the stud length is one inch. This cam follower is unsealed and made of bearing steel with a black oxide finish.
- Stud type cam follower.
- Cylindrical outside diameter.
- Needle rolling elements with hex hole.
Product Highlights
This cam follower is suitable for applications requiring durability and precision. It supports radial loads effectively and operates well at maximum speeds up to three thousand four hundred rpm.
Product Information
Standard Information
-
Brand: McGill
-
Country of Origin: Mexico
Technical Specifications
-
Series: Inch CAMROL (CF)
-
Weight: 0.3 lbs
-
Maximum RPM: 3400 rpm
-
Head Type: Hex Hole
-
Stud Type: CF - Standard Stud
-
Thread Size: 7/16-20
-
Closure Type: Open
-
Roller Shape: Cylindrical
-
Roller Diameter: 1-1/8 in
-
Roller Material: Bearing Steel, Black Oxide Finish
-
Radial Static Load Capacity: 1800 lbf
-
Radial Dynamic Load Capacity: 2225 lbf
