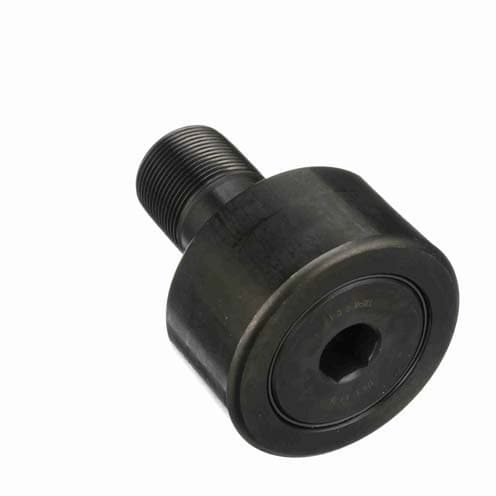

McGill CCFH31/4SB Crowned & Flat Cam Followers - Heavy Stud CAMROL Series, 3.2500 in Roller Dia, 1.7500 in Roller Width, 1.5000 in Stud Dia

Product Description

The McGill CCFH31/4SB is a crowned and flat cam follower designed for heavy-duty applications. This model features a roller diameter of three and a quarter inches and a roller width of one and three-quarters inches. It is engineered with a sealed design that protects the internal components while enhancing longevity. This cam follower is built for efficiency in demanding environments.

• Stud type cam follower with crowned outside diameter
• Hex hole for secure attachment
• Equipped with LUBRI-DISC seal for protection

Product Highlights

The CCFH31/4SB is perfect for applications requiring high load capacity and durability, making it suitable for various mechanical systems.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: United States

Technical Specifications

• MPN: CCFH31/4SB
• Series: Heavy Stud CAMROL
• Roller Diameter: 3-1/4 in
• Roller Width: 1.7500 in
• Stud Diameter: 1.5000 in
• Stud Length: 2.5000 in
• Closure Type: Sealed
• Lubrication Hole Location: Stud Side, Head
• Radial Static Load Capacity: 31500 lbf
• Radial Dynamic Load Capacity: 15720 lbf
• Max RPM: 880 rpm
• Thread Size: 1 1/2-12
• Roller Shape: Crowned
• Bearing Element: Needle Rollers
• Finish Coating: Black Oxide Finish
