McGill CCFH31/2SB CCFH 3 1/2 SB Heavy Stud CAMROL Series

Product Description

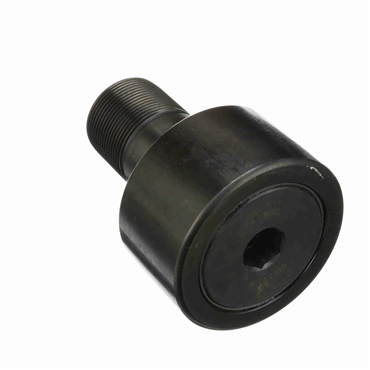

The McGill CCFH31/2SB is a crowned and flat cam follower from the Heavy Stud CAMROL series. It features a roller diameter of three and a half inches and a roller width of two inches. Designed for significant load applications, this cam follower is sealed for enhanced durability and reliability.

• Suitable for heavy-duty operations
• Sealed for optimal performance
• Hex hole configuration

Product Highlights

This cam follower is ideal for machine applications where heavy loads are encountered and precise alignment is necessary.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: United States, Mexico

Technical Specifications

• Series: Heavy Stud CAMROL
• Weight: 6.69 lbs
• Head Type: Hex Hole
• Stud Type: CFH - Heavy Stud
• Maximum RPM: 820 rpm
• Stud Length: 2.7500 in
• Thread Size: 1 3/4-12
• Closure Type: Sealed
• Roller Diameter: 3-1/2 in
• Roller Width: 2.0000 in
• Stud Diameter: 1.7500 in
• Lubrication Hole Location: Head, Stud Side
• Finish/Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
• Radial Static Load Capacity: 45700 lbf
• Radial Dynamic Load Capacity: 22800 lbf
