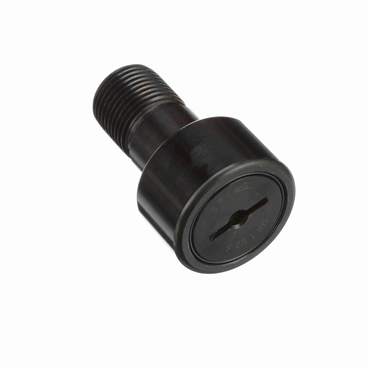

McGill CCFH11/2S CCFH 1 1/2 S Crowned & Flat Cam Followers - Heavy Stud CAMROL Series

Product Description

The McGill CCFH11/2S is a crowned and flat cam follower designed for various applications. This model features a diameter of one and one-half inches with a width of zero point875 inches. It is suitable for use in assemblies that require reliable motion transfer and support.

• Crowned outside diameter enhances load distribution.
• Sealed design protects against contamination.
• Needle rolling elements ensure smooth operation.

Product Highlights

This cam follower is engineered for durability and efficiency in mechanically demanding environments.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: Mexico

Technical Specifications

• Series: Heavy Stud CAMROL
• Weight: 0.61 lbs
• Stud Diameter: 0.7500 in
• Roller Diameter: 1-1/2 in
• Roller Width: 0.8750 in
• Stud Length: 1.5000 in
• Maximum RPM: 2500 rpm
• Radial Static Load Capacity: 11280 lbf
• Radial Dynamic Load Capacity: 4840 lbf
• Closure Type: Sealed
• Finish/Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
• Thread Size: 7/8-14
• Lubrication Hole Location: Stud Side
• Manufacturer Catalog Number: CCFH 1 1/2 S
• Manufacturer Product Page: Link
• SDS: Link
• CAD Drawing: Link
