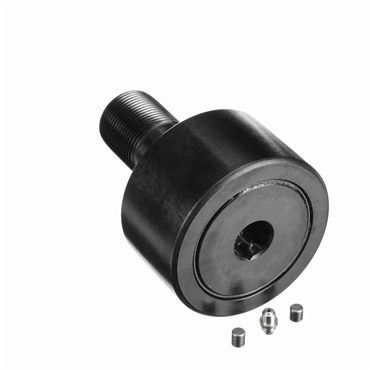

McGill CCF31/2SB CCF 3 1/2 SB Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

The McGill CCF31/2SB CCF 3 1/2 SB is a crowned and flat cam follower from the Inch CAMROL (CF) series. This cam follower features a roller diameter of three and a half inches and is designed for reliable performance in various applications. The product is sealed for enhanced durability, making it suitable for use in environments where contamination is a concern.

• Stud type cam follower
• Crowned outside diameter
• Hex hole LUBRI-DISC seal

Product Highlights

The CCF 3 1/2 SB combines a robust design with quality materials, ensuring it meets the demanding needs of industrial applications.

Product Information

Standard Information

• Brand: McGill
• MPN: CCF 3 1/2 SB

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 6.1 lbs
• Head Type: Hex Hole
• Stud Type: Standard
• Thread Size: 1 3/8-12
• Closure Type: Sealed
• Roller Diameter: 3 1/2 in
• Roller Width: 2.0000 in
• Roller Shape: Crowned
• Finish Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
• Radial Static Load Capacity: 31625 lbf
• Radial Dynamic Load Capacity: 22800 lbf
• Lubrication Hole Location: Stud Side
• Manufacturer Catalog Number: CCF 3 1/2 SB
