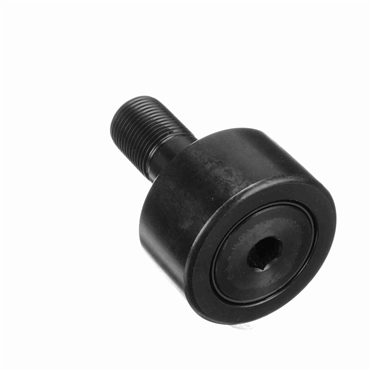

McGill CCF21/4SB CCF 2 1/4 SB Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

The McGill CCF21/4SB is a crowned and flat cam follower designed for reliable performance in various applications. The product features a roller diameter of two and a quarter inches, and a roller width of one and a quarter inches. It is constructed from bearing steel with a black oxide finish, ensuring durability and resistance to wear.

• Sealed for protection against contamination
• Optimized for radial load capacities up to 8,090 lbf with a static load capacity of 10,570 lbf
• Designed with needle rollers for low friction and high stability

Product Highlights

The CCF21/4SB cam follower is ideal for applications requiring precise movement and stability. Its sealed design minimizes maintenance needs, while the crowned roller shape provides smooth operation.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: Mexico

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 1.62 lbs
• Max RPM: 1,300 rpm
• Head Type: Hex Hole
• Stud Type: Standard
• Thread Size: 7/8-14
• Closure Type: Sealed
• Roller Diameter: 2-1/4 in
• Roller Width: 1.2500 in
• Finish Coating: Black Oxide Finish
• Bearing Element: Needle Rollers
• Lubrication Hole Location: Stud Side
• Radial Static Load Capacity: 10,570 lbf
• Radial Dynamic Load Capacity: 8,090 lbf
