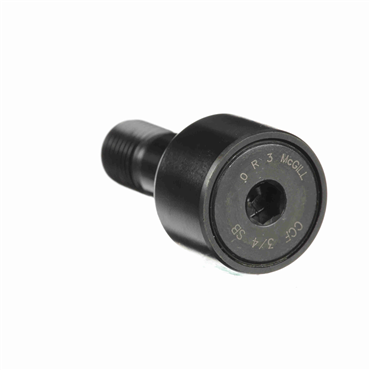

McGill CCF 3/4 SB Crowned & Flat Cam Followers - Inch Camrol (CF) Series

Product Description

The McGill CCF 3/4 SB is a crowned and flat cam follower designed for durability and performance. This product features a roller diameter of three fourths of an inch and a roller width of one half of an inch. It has a sealed bearing construction and is made from bearing steel with a black oxide finish. It is ideal for use in applications where load capacity and reliable operation are essential.

• Roller diameter of three fourths of an inch.
• Rated for maximum RPM of six thousand four hundred.
• Features a sealed closure type for protection against contaminants.

Product Highlights

This cam follower is engineered for a range of industrial uses, providing reliable motion and low friction.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: Mexico

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 0.09 lbs
• Max RPM: 6400 rpm
• Head Type: Hex Hole
• Stud Type: Standard
• Thread Size: 3/8-24
• Closure Type: Sealed
• Roller Shape: Crowned
• Roller Material: Bearing Steel, Black Oxide Finish
• Radial Static Load Capacity: 2065 lbf
• Radial Dynamic Load Capacity: 1660 lbf
