McGill CCF 11/16 SB Crowned & Flat Cam Followers - Inch CAMROL (CF) Series

Product Description

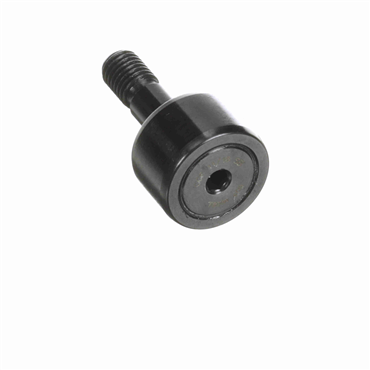

The McGill CCF 11/16 SB is a crowned and flat cam follower. It features a sealed design, which helps to protect the internal components from contamination. The roller diameter is eleven sixteenths inches, and it has a roller width of four hundred thirty-seven thousandths inches. This cam follower is part of the Inch CAMROL (CF) Series and is suitable for various applications in machinery.

• Crowned outside diameter
• Stud type cam follower
• Hex hole for easy installation

Product Highlights

This cam follower is designed for use where radial loads are present and provides reliable operation and longevity.

Product Information

Standard Information

• Brand: McGill
• Country Of Origin: Mexico

Technical Specifications

• Series: Inch CAMROL (CF)
• Weight: 0.05 lbs
• Max RPM: 8300 rpm
• Head Type: Hex Hole
• Stud Type: CF - Standard Stud
• Thread Size: 1/4-28
• Closure Type: Sealed
• Roller Diameter: 11/16 in
• Roller Material: Bearing Steel, Black Oxide Finish
• Radial Static Load Capacity: 600 lbf
• Radial Dynamic Load Capacity: 955 lbf
