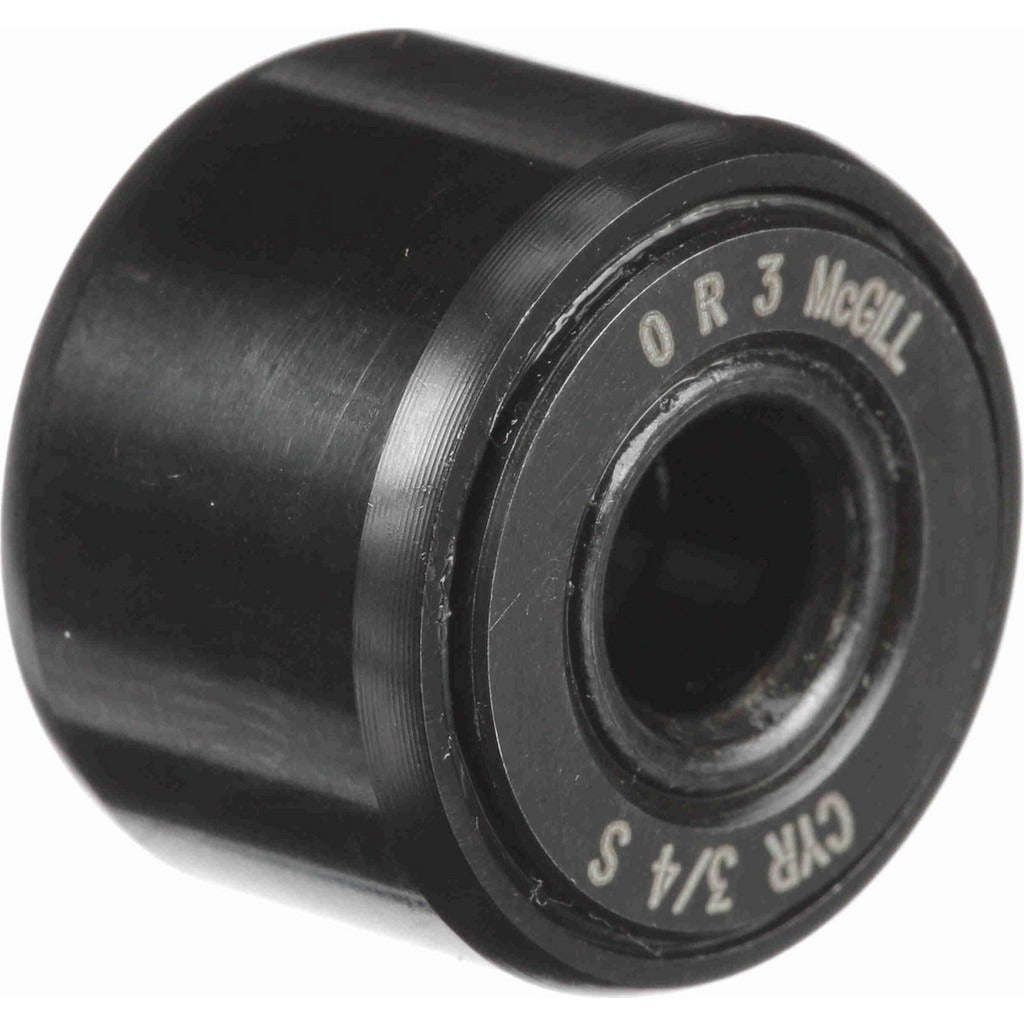

Mcgill 4060110000 Crowned Cam Yoke Roller Needle Bearing

Product Description

The MCGILL 4060110000 is a sealed yoke cam follower designed for converting rotary motion to linear or oscillating motion in cam-driven mechanisms. This crowned roller style uses a needle roller bearing internally, which keeps the radial load capacity high while maintaining a compact envelope. The roller measures 0.75 inches in diameter and 0.5 inches wide, with a 0.25-inch bore. Dynamic load capacity is rated at 1,660 pounds, and static load capacity reaches 4,130 pounds. The sealed closure keeps contaminants out without requiring external lubrication access during normal service intervals. Machinists, maintenance technicians, and mechanical system builders typically install this type of follower.

This cam follower is suited for industrial machinery, conveyor systems, cam-and-follower assemblies, and precision motion control applications where a crowned roller profile is needed to accommodate minor shaft misalignment and reduce edge loading. The crowned roller geometry distributes contact stress across the roller face rather than concentrating it at the edges, which extends service life in applications with slight angular deviation. It is also referenced by McGill part number CYR 3/4 S.

Key Features

• Crowned roller profile reduces edge loading under misalignment conditions
• Needle roller bearing provides high radial load capacity in a compact form factor
• Sealed closure protects the bearing from contamination without external lubrication access
• Dynamic load capacity of 1,660 pounds and static load capacity of 4,130 pounds
• Maximum speed rating of 6,400 RPM
• Steel roller and steel construction throughout

Compatibility

Also cataloged under McGill part number CYR 3/4 S. Designed as an OEM-style replacement or direct application cam yoke roller for industrial cam-and-follower mechanisms requiring a 0.25-inch bore, 0.75-inch roller diameter, and crowned roller geometry.

Installation Notes

Installation is typically performed by a mechanical or maintenance technician. Power down and de-energize all equipment before servicing any cam-driven assembly. Ensure the mounting stud or shaft bore is clean and within tolerance before pressing or threading the follower into position. Do not apply excessive side loads beyond the rated capacity during assembly or operation.
